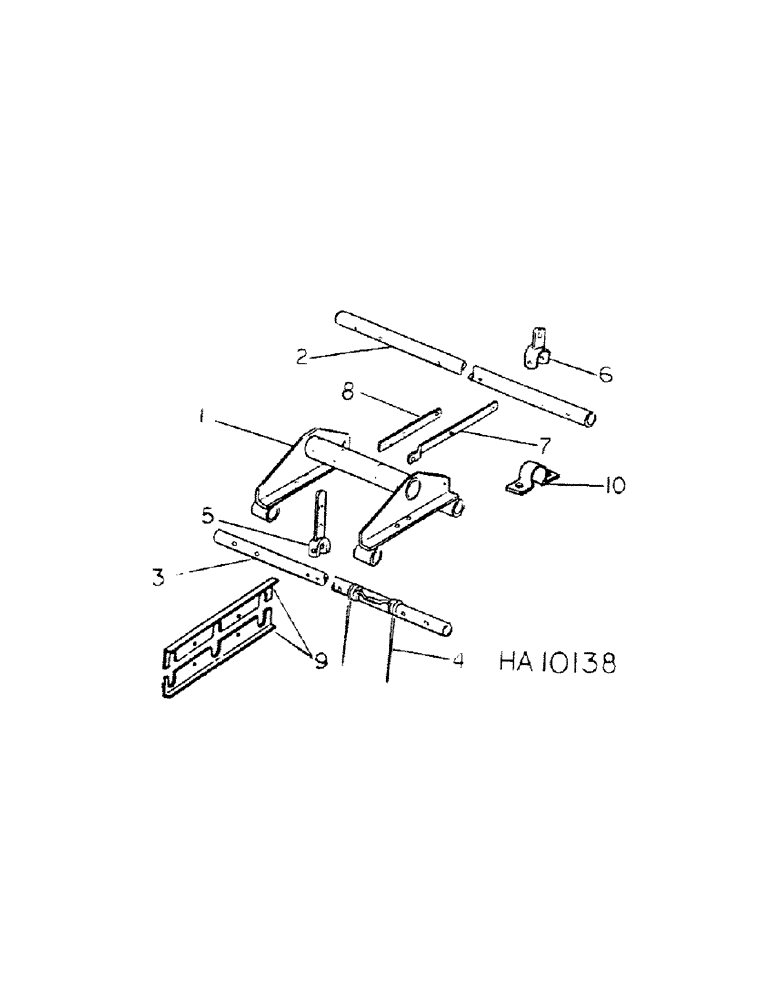

Запчасти Case IH 45 (E-05[A]) - 4 FOOT, 9 INCH MULCHER

1

485615R2

FRAME

4-3/4 foot mulcher

1шт.

2

485596R1

TUBE

4-3/4 foot 1st tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

3

485597R1

TUBE

4-3/4 foot 3rd tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

4

72901C1

TOOTH

spring

8шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

3/8-16 x 2-3/4 hex-hd shoulder

16шт.

472144R1

NUT

3/8-16 hex, lock

16шт.

5

485592R1

ARM

rear handle

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

7/16-14 x 2-3/4 znd hex-hd

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex, lock

1шт.

6

485601R1

ARM

front post

1шт.

NLS

NO LONGER SERVICED

7/16-14 x 2-3/4 znd hex-hd

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex, lock

1шт.

7

485593R1

SUPPORT

handle reach

1шт.

8

485594R1

BAR

adjusting reach

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 std head drilled

4шт.

607891R1

WASHER

.469 x 1.000 x .054

3шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

485598R1

SUPPORT

center rail

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 znd hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

10

(Not used this application)

1шт.
