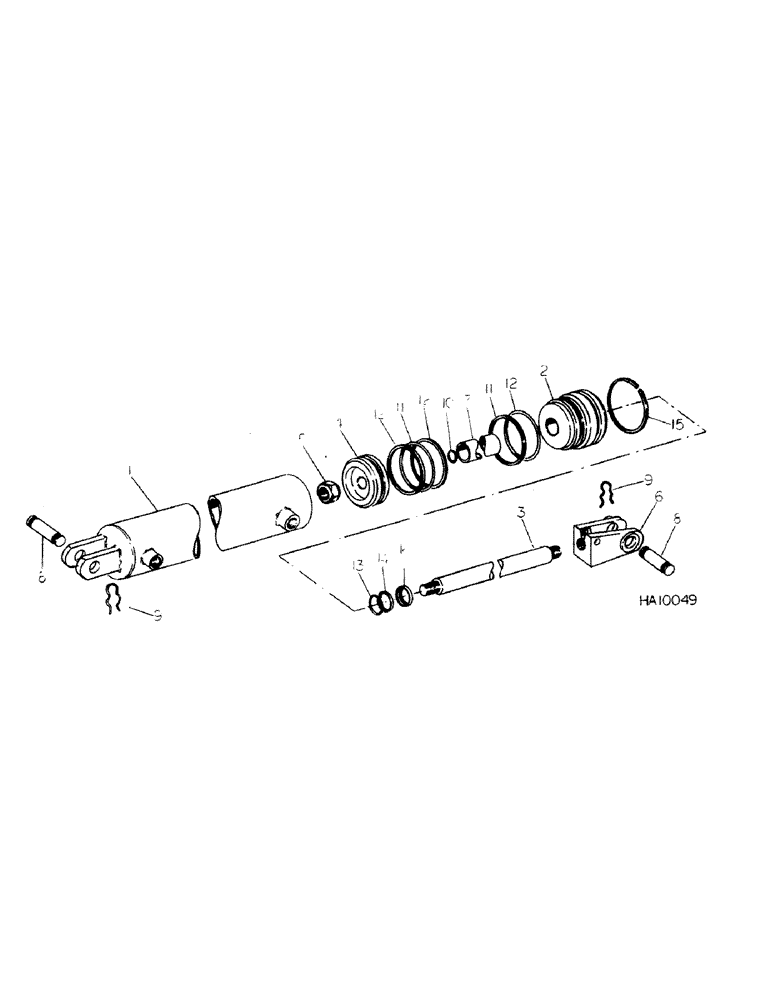

Запчасти Case IH 45 (D-74) - WING LIFT HYDRAULIC CYLINDER, PRINCE, 31 FOOT 6 INCH MODEL BUILT AUG 1976 SEASON AND SINCE

813238C91

CYLINDER

CYL ASSY, 3 x 48 DA wing lift, opt w/811677C91, Cross

1шт.

1

813203C1

BODY, hydraulic cylinder

1шт.

2

813216C1

END

cylinder head

1шт.

3

813234C1

ROD

cylinder piston

1шт.

4

813369C1

PISTON

cylinder

1шт.

5

9416471

NUT

1-14 hex lock

1шт.

6

813397C91

CLEVIS

ASSY, cylinder rod, includes 1-180089, bolt and 1-120376, nut

1шт.

180089

SPRING

5/16-18 x 2-1/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

7

813400C1

SPACER, piston rod

1шт.

8

813456C1

PIN

clevis

2шт.

9

813464C1

PIN

clevis retaining

2шт.

10

377028R1

O-RING,0.989" ID x 0.07" Width

1.00 x 1.125 x .063

1шт.

11

3044436R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

2.625 x 3.00 x .188

2шт.

12

WASHER, o-ring back-up, not serviced separately, for service order 1-813454C91, seal repair kit

1шт.

13

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1.250 x 1.500 x .125

1шт.

14

WASHER, o-ring back-up, not serviced separately, for service order 1-813454C91, seal repair kit

1шт.

15

RING, cylinder end retaining, not serviced separately, for service order 1-813454C91, seal repair kit

1шт.

16

SEAL, piston rod wiper, not serviced separately, for service order 1-813454C91, seal repair kit

1шт.

813454C91

SEAL KIT

hydraulic cylinder seal repair, consists of ref nos. 10 - 16

1шт.
