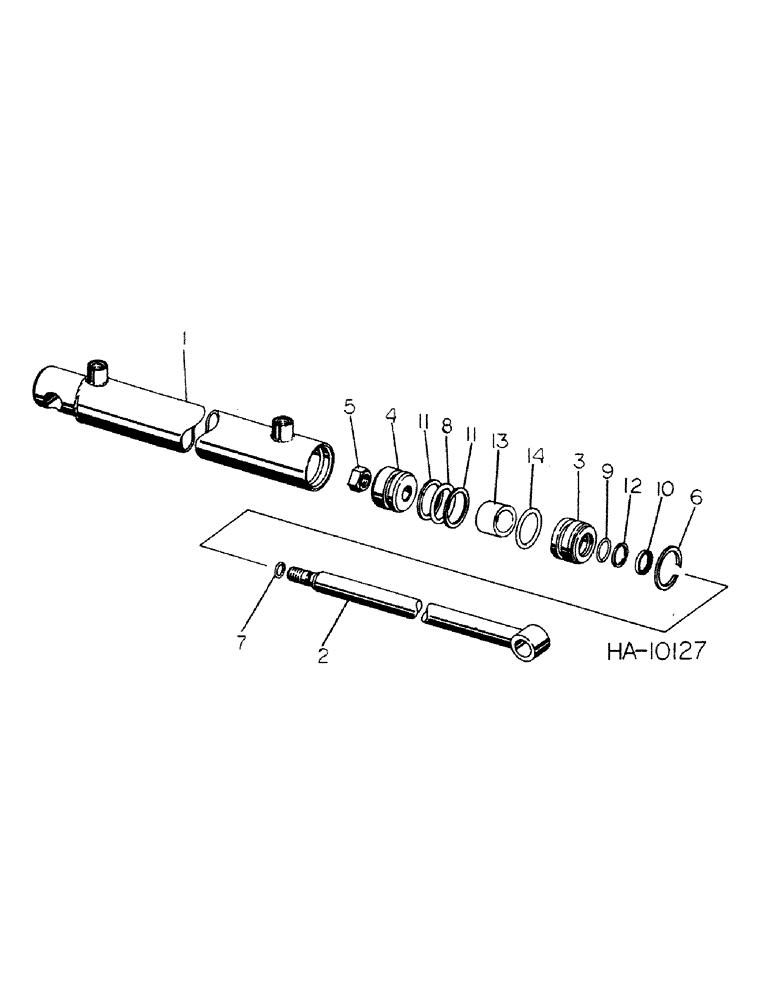

Запчасти Case IH 45 (D-72) - WING LIFT HYDRAULIC CYLINDER, PNEU, HYD, 22 FOOT 6 INCH MODEL BUILT AUGUST 1976 SEASON AND SINCE

813245C91

CYLINDER

CYL ASSY, 3 x 32 DA wing lift, opt w/813243C91, ALCO w/813244C91, prince

1шт.

1

811633C1

BODY, hydraulic cylinder

1шт.

2

811672C1

ROD

hydraulic cylinder piston

1шт.

3

811664C1

END

hydraulic cylinder

1шт.

4

811820C1

PISTON

cylinder

1шт.

5

9416471

NUT

1-14 hex lock

1шт.

6

(Not used this application)

1шт.

7

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

.875 x 1.000 x .063

1шт.

8

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2.625 x 3.000 x .188

1шт.

9

O-RING, piston rod, not serviced separately, for service order kit, 811821C91

1шт.

10

WIPER, piston rod oil seal, not serviced separately, for service order kit, 811821C91

1шт.

11

WASHER, piston o-ring back-up, not serviced separately, for service order kit, 811821C91

1шт.

12

WASHER, piston rod o-ring back-up, not serviced separately, for service order kit, 811821C91

1шт.

13

811815C1

SPACER

piston rod stop

1шт.

14

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2.750 x 3.000 x .125

1шт.

811821C91

SEAL KIT

hydraulic cylinder seal repair, consists of ref nos. 7 thru

1шт.
