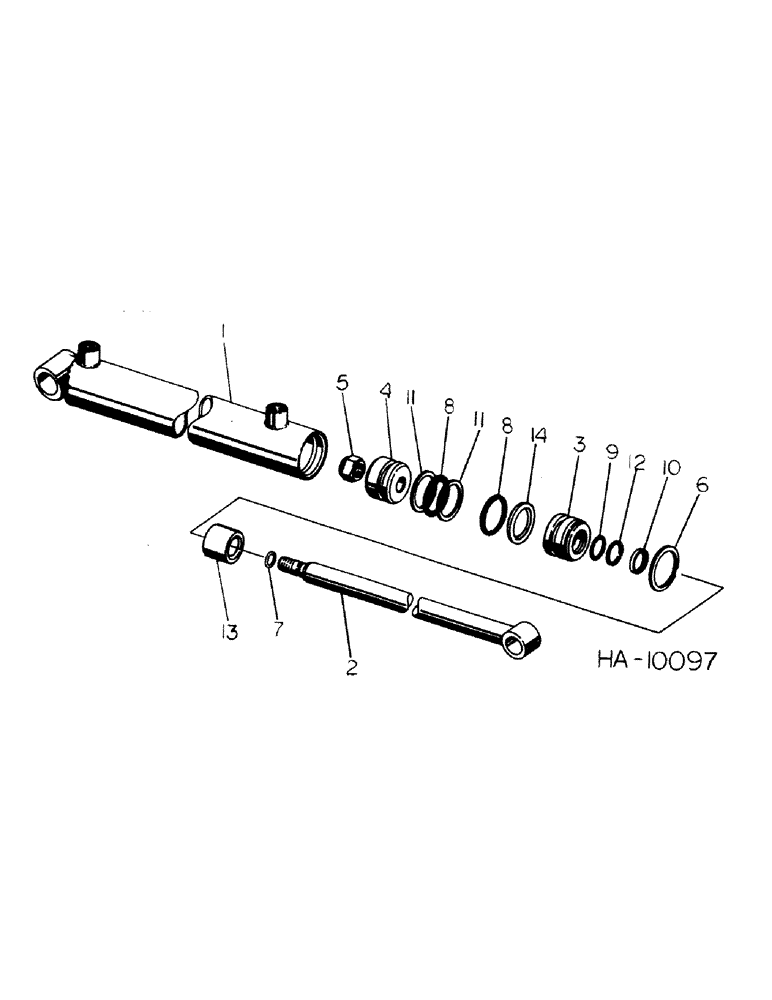

Запчасти Case IH 45 (D-71) - WING LIFT HYDRAULIC CYLINDER, PRINCE, 22 FOOT 6 INCH MODEL BUILT AUGUST 1976 SEASON & SINCE

813244C91

CYLINDER

CYL ASSY, 3 x 34 DA wing lift, opt w/813243C91, alco or w/813245C91, pneu, hyd

1шт.

1

813204C1

BODY

hydraulic cylinder

1шт.

2

813256C1

ROD

hydraulic cylinder piston

1шт.

3

813216C1

END

hydraulic cylinder

1шт.

4

813369C1

PISTON

hydraulic cylinder

1шт.

5

9416471

NUT

1-14 hex lock PHC

1шт.

6

RING, cylinder end retaining, not serviced separately, for service order kit, 813442C91

1шт.

7

377028R1

O-RING,0.989" ID x 0.07" Width

1.000 x 1.125 x .063

1шт.

8

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

O0RING, 2.625 x 3.000 x .188

2шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1.250 x 1.500 x .125

1шт.

10

WIPER, piston rod oil seal, not serviced separately, for service order kit, 813442C91

1шт.

11

WASHER, back-up, not serviced separately, for service order kit, 813442C91

1шт.

12

WASHER, piston rod o-ring back-up, not serviced separately, for service order kit, 813442C91

1шт.

13

813400C1

SPACER, cylinder piston rod

1шт.

14

WASHER, back-up, not serviced separately, for service order kit, 813442C91

1шт.

813442C91

SEAL KIT

cylinder seal repair, consists of ref nos. 6 thru 12, 14

1шт.
