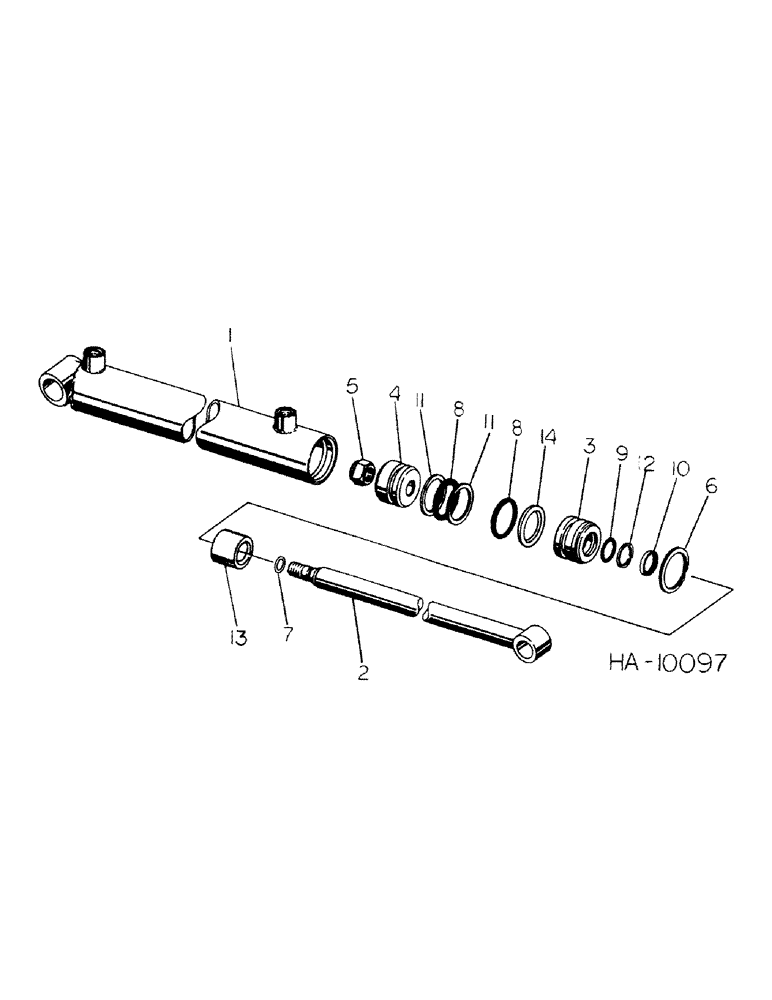

Запчасти Case IH 45 (D-70) - WING LIFT HYDRAULIC CYLINDER - ALCO, 22 FOOT 6 INCH MODEL BUILT AUG 1976 SEASON AND SINCE

813243C91

CYLINDER

CYL ASSY, 3 x 34 DA wing lift, opt w/813244C91, prince or 813245C91, pneu, hyd

1шт.

1

810062C1

BODY

cylinder

1шт.

2

810075C1

ROD

piston

1шт.

3

810073C1

END

cylinder

1шт.

4

810091C1

PISTON, cylinder

1шт.

5

811850C1

NUT

7/8-14 hex, lock

1шт.

6

(Not used this application)

1шт.

7

574069R1

O-RING,0.750" ID x .062"

.750 x .875 x .06

1шт.

8

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2.625 x 3.000 x .18

2шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1.250 x 1.500 x .125

1шт.

10

SEAL, dust, not serviced separately, for service order kit, 810107C91

1шт.

11

WASHER, o-ring back-up, not serviced separately, for service order kit, 810107C91

1шт.

12

WASHER, o-ring back-up, not serviced separately, for service order kit, 810107C91

1шт.

13

810096C1

SPACER

piston

1шт.

14

WASHER, o-ring back-up, not serviced separately, for service order kit, 810107C91

1шт.

810107C91

SEAL KIT

hyd cyl seal repair, consists of ref nos. 7 thru 12, 14

1шт.
