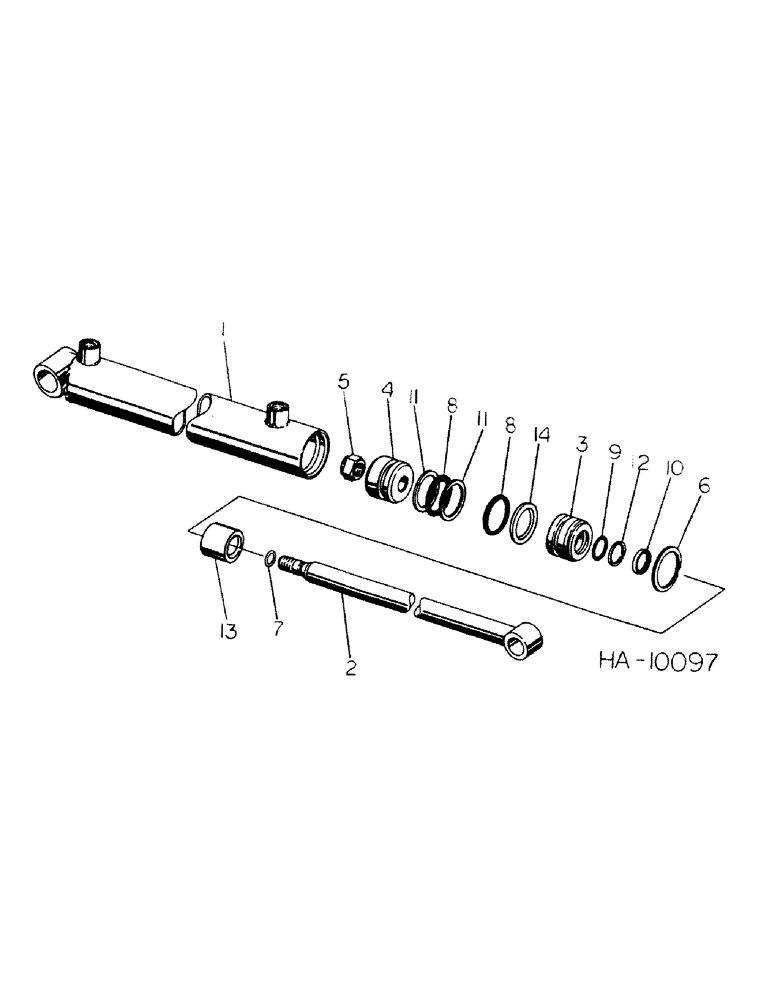

Запчасти Case IH 45 (D-69) - WING LIFT HYDRAULIC CYLINDER, MODELS BUILT 1974 TO AUGUST 1976

811888C91

CYLINDER

ASSY, wing lift hydraulic

1шт.

1

811846C1

BODY, cylinder

1шт.

2

811847C1

ROD

ASSY, piston

1шт.

3

811848C1

HEAD

cylinder

1шт.

4

811849C1

PISTON

1шт.

5

811850C1

NUT

7/8-14 UNF piston

1шт.

6

25729R1

SNAP RING,#250, 2.653", Int, Spiral

RING, head retaining

1шт.

7

574069R1

O-RING,0.750" ID x .062"

.750 x .875 x .063

1шт.

8

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2.125 x 2.500 x .188

2шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1.250 x 1.500 x .125

1шт.

10

606749R91

OIL SEAL

oil

1шт.

11

WASHER, o-ring back-up, not serviced separately, for service order kit, 811855C1

2шт.

12

WASHER, o-ring back-up, not serviced separately, for service order kit, 811855C1

1шт.

13

(Not used this application)

1шт.

14

(Not used this application)

1шт.

811855C1

SEAL KIT

hyd cyl seal repair, consists of ref nos. 7 thru 12

1шт.
