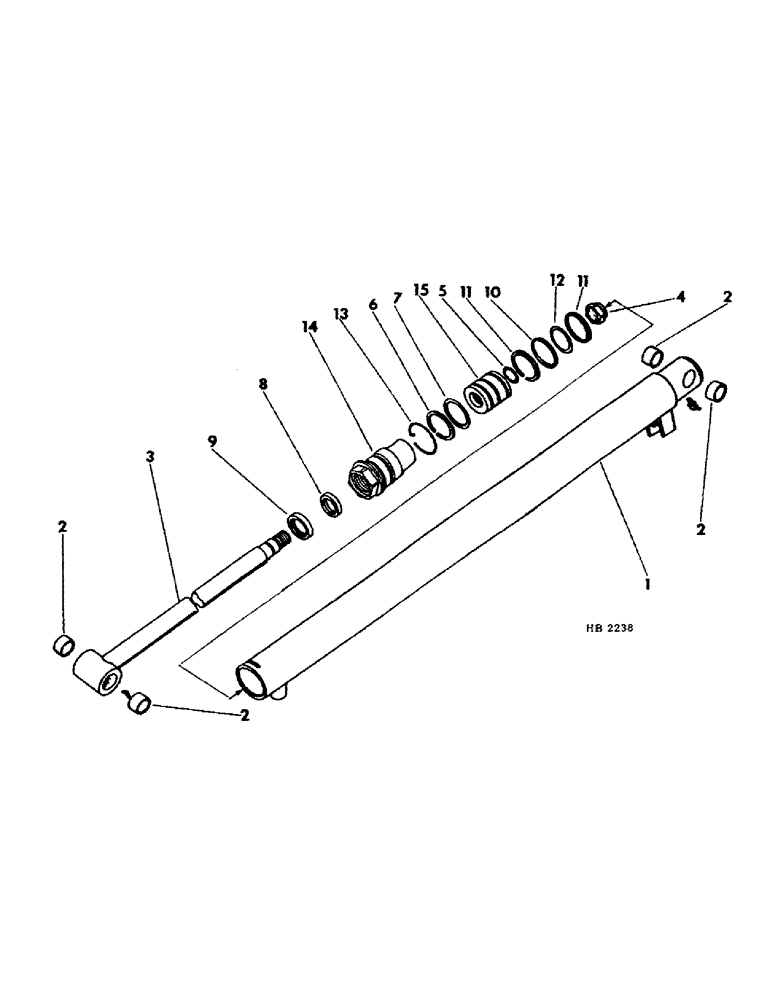

Запчасти Case IH 45 (D-68) - WING LIFT HYDRAULIC CYLINDER, MODELS BUILT 1965 TO 1974 SEASON

384474R94

CYLINDER ASSY.

CYLINDER ASSY, wing lift hydraulic, 2.5 x 33.75 DA

1шт.

1

384476R22

BODY

PIPE ASSY, cyl, includes (2) 378478R1 bushing

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str, drive lub

1шт.

2

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

cyl pipe & piston rod

4шт.

3

384127R11

ROD

ASSY, piston, includes (2) 378478R1, bushing

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str, drive lub

1шт.

4

9416471

NUT

1-14 hex lock

1шт.

5

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

piston rod static

1шт.

6

378733R1

BACK-UP RING

WASHER, back-up

1шт.

7

21255R1

O-RING,2.1" ID x 2.52" OD x 0.21"

2.125 x 2.500 x .188 piston

1шт.

8

119203

PIN,3/8" x 3"

SEAL, piston rod

1шт.

9

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER, rod

1шт.

10

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, piston

1шт.

11

379960R1

SEALING RING

BEARING, piston

2шт.

12

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

13

385133R1

RETAINING WIRE

RING, retaining

1шт.

14

378536R2

GUIDE

HEAD, front

1шт.

15

384129R1

PISTON ASSY.

PISTON

1шт.

63578C91

SEAL PACKAGE

KIT, cyl seal service, consists of ref nos. 5 thru 13

1шт.
