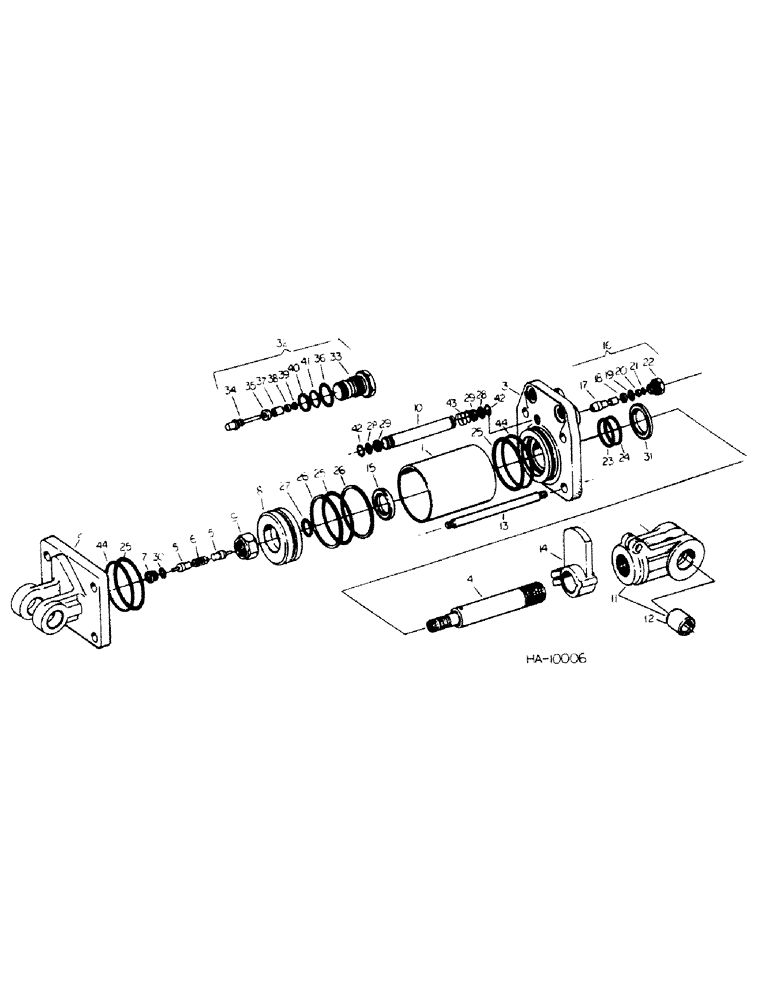

Запчасти Case IH 45 (D-64) - MASTER HYDRAULIC CYLINDER, CROSS, AUGUST, 1976 SEASON AND SINCE

812735C92

CYLINDER

ASSY, main wheel master, 3-1/2 x 8 inch double acting

2шт.

1

812571C1

TUBE

cylinder body

1шт.

2

811892C1

CLEVIS

cylinder base for service prior to August, 1979 also order 1-849281R1, kit

1шт.

3

END, cylinder w/.510 dia hole at stroke control order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

3

811893C1

END ASSY.

END, hydraulic cylinder w/.810 dia hole at stroke control machines built Sept, 1977 & since

1шт.

4

812603C1

ROD

cylinder piston

1шт.

5

812604C1

VALVE

piston rod poppet

2шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

812640C1

PISTON

cylinder

1шт.

9

75773C1

NUT

1-14 hex

1шт.

10

812646C1

TUBE,0.39" ID, 0.629" OD

feed

1шт.

11

813038C91

CLEVIS

ASSY, piston rod, includes (2) bushings

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

BUSHING, piston rod clevis, not serviced separately, order 1-813038C91, clevis assy

1шт.

13

849268R1

ROD

cylinder tie

4шт.

124634

NUT,9/16"-18, G5

8шт.

14

812649C1

STOP

piston rod

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1шт.

15

812650C1

COLLAR

piston stop

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

16

POPPET ASSY, stroke control replaces 1-811022C1, prior to Sept., 1977, consists of ref nos. 17 thru 22, order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

17

POPPET, stroke control, not serviced separately, order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

18

BUSHING, stroke control, not serviced separately, order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

19

260599R1

O-RING, .188 x .313 x .063, prior to Sept., 1977

1шт.

20

O-RING, poppet stop, not serviced separately, order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

21

WASHER, poppet o-ring back-up, not serviced separately, order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

22

RETAINER, stroke control poppet, not serviced separately, order 1-811893C1, end, 1-811097C91, 1-849281R1, kit

1шт.

23

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1.250 x 1.500 x .125

1шт.

24

WASHER, piston rod o-ring back-up, not serviced separately, for service order 1-849281R1, kit

1шт.

25

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3.125 x 3.50 x .188

3шт.

26

WASHER, piston o-ring back-up, not serviced separately, for service order 1-849281R1, kit

1шт.

27

350818R1

O-RING,0.984" ID x 0.139" Width

1.000 x 1.250 x .125, for use w/piston requiring o-ring

1шт.

28

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

.500 x .625 x .063

2шт.

29

WASHER, feed tube o-ring back-up, not serviced separately, for service order 1-849281R1, kit

2шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

31

67167C1

OIL SEAL

wiper oil

1шт.

32

811097C91

VALVE

ASSY, stroke control poppet machines built, Sept. 1977 and since, consists of ref nos. 33 thru 41

1шт.

33

HOUSING, poppet valve cartridge, not serviced separately, order 1-811097C91, poppet assy

1шт.

34

PLUNGER, poppet valve, not serviced separately, order 1-811097C91 poppet assy

1шт.

35

U-CUP, poppet valve, not serviced separately, order 1-811097C91, poppet assy

1шт.

36

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 x .949 x .097

1шт.

37

BUSHING, poppet valve, not serviced separately, order 1-811097C91, poppet assy

1шт.

38

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

.188 x .313 x .063

1шт.

39

WASHER, o-ring back-up, not serviced separately, order 1-811097C91, poppet assy

1шт.

40

WASHER, o-ring back-up, not serviced separately, order 1-811097C91, poppet assy

1шт.

41

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

.625 x .750 x .063

1шт.

42

811089C1

SPRING WASHER

feed tube spring, for use w/cylinders having .810 dia, hole at stroke control, prior to Aug. 1979

1шт.

43

849259R1

SPRING

feed tube, machines built Aug. 1979 & since

1шт.

44

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3.250 x 3.500 x .125

2шт.

812652C1

KIT

hyd cyl seal repair, machines prior to Aug. 1979, consists of ref nos. 23 thru 31

1шт.

849281R1

SEAL KIT

seal repair, machines built Aug. 1979 & since, consists of ref nos. 23 thru 31, 44

1шт.
