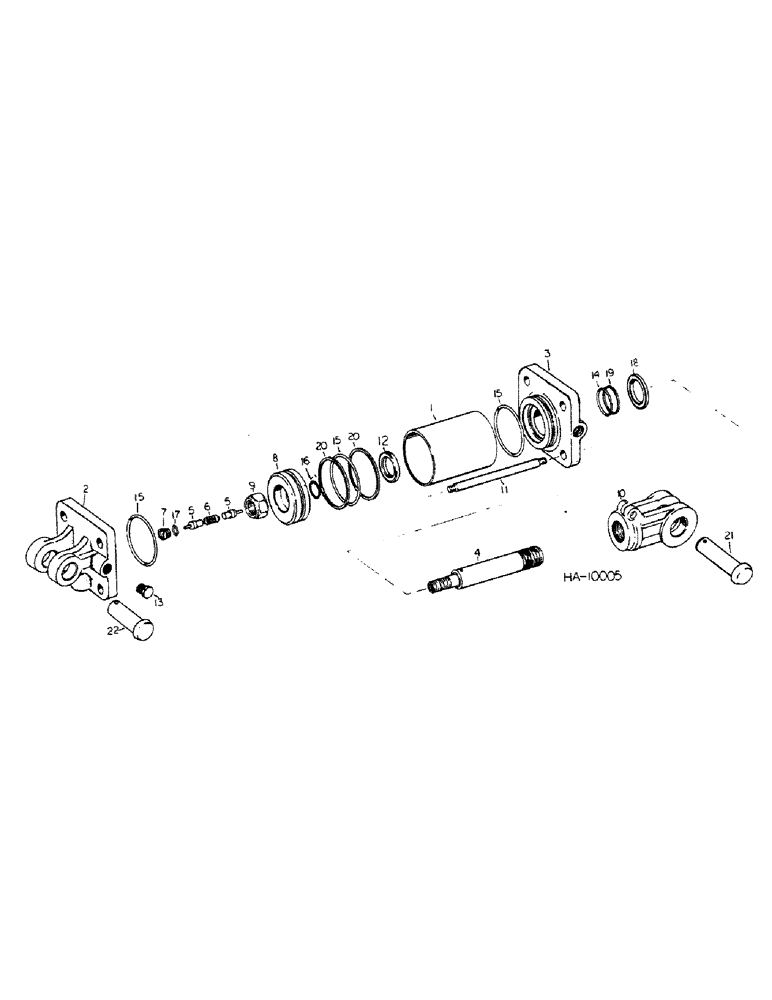

Запчасти Case IH 45 (D-62) - SLAVE HYDRAULIC CYLINDER, CROSS, AUGUST, 1976 SEASON AND SINCE

812736C91

CYLINDER

ASSY, wing wheel slave, 3-1/4 x 8 inch double acting

2шт.

87423770R

REMAN-HYD CYLINDER

45 INTERNATIONAL HARVESTER VIBRA SHANK CULTIVATOR, Reman for New P/N 812736C91

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

812577C1

TUBE

cylinder body

1шт.

2

812583C1

CLEVIS

cylinder base

1шт.

3

812598C1

END

cylinder

1шт.

4

812603C1

ROD

cylinder piston

1шт.

5

812604C1

VALVE

piston rod poppet

2шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

812645C1

PISTON

cylinder

1шт.

9

75773C1

NUT

1-14 hex lock

1шт.

10

812266C1

CLEVIS

piston rod

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

812648C1

ROD

cylinder tie

4шт.

124634

NUT,9/16"-18, G5

8шт.

12

812650C1

COLLAR

piston stop

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

9410359

PLUG

3/4-16 str thd o-ring boss

1шт.

14

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1.250 x 1.500 x .125, hydraulic cylinder end

1шт.

15

336192R1

O-RING

2.875 x 3.250 x .188

3шт.

16

350818R1

O-RING,0.984" ID x 0.139" Width

1.000 x 1.250 x .125

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

67167C1

OIL SEAL

wiper oil

1шт.

19

WASHER, o-ring back-up, not serviced separately, for service order 1-812653C1, seal repair kit

1шт.

20

WASHER, piston o-ring back-up, not separately, for service order 1-812653C1, seal repair kit

2шт.

21

24581R1

PIN

1 x 3.5 std-hd-dld znd type 5

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

22

24581R1

PIN

1 x 3.5 std-hd-dld znd type 5

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

812653C1

KIT

hyd cyl seal repair, consists of ref nos. 14 thru 20

1шт.
