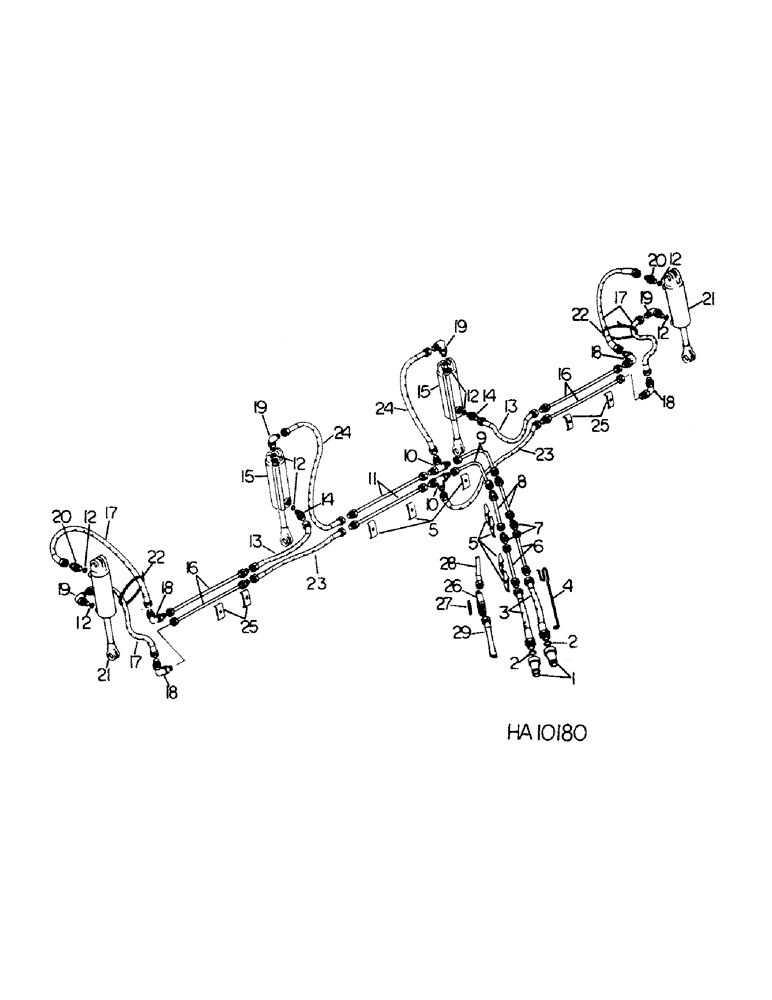

Запчасти Case IH 45 (D-57) - DEPTH CONTROL HYDRAULICS, CESSNA, OPT WITH CROSS HYD CYL TYPE, MODELS BUILT AUGUST 1976 SEASON&SINCE

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler, recommended hydraulics

2шт.

3

811270C1

HOSE

1/2 x 80 inch long hydraulic

2шт.

4

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

5

614323R2

CLAMP

hydraulic tube, 4 used 22 foot 6 inch, 6 used 31 foot 6 inch

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1 per clamp Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

6

813260C1

TUBE

ASSY, 56.25 inch hyd front depth control, 22 foot 6 inch model

2шт.

6

813261C1

TUBE,0.5" OD, 93.5, 5" Length

ASSY, 93.5 in. hyd front depth control, 31 foot 6 inch model

2шт.

7

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg. flared tube front to intermediate tube

2шт.

8

813262C1

TUBE

ASSY, 68 inch main wheel lift hyd control, 22 foot 6 inch model

2шт.

8

813263C1

TUBE

ASSY, 87.5 in. hyd intermediate, 31 foot 6 inch model

2шт.

9

813264C1

TUBE

ASSY, 20.75 in. hyd corner

2шт.

10

9402982

TEE,3/4"-16, 37 Degree

3/4-16 hyd 37 deg. flared tube three-way

2шт.

11

813265C1

TUBE

ASSY, 50.5 in main wheel lift hyd, 22 foot 6 inch model

2шт.

11

813262C1

TUBE

ASSY, 68 in hyd main wheel lift, 31 foot 6 inch model

2шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

cylinder union

8шт.

13

813077C1

HOSE ASSY.

HOSE, 55 in. master hyd cyl return

2шт.

14

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg. flared tube short swivel master cylinder

2шт.

15

812368C91

CYLINDER

CYL ASSY, 3.5 x 8 main wheel, for comps refer to master hyd cyl

2шт.

24581R1

PIN

1 x 3.5 std-hd-dld znd type 5

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

16

813427C1

TUBE

ASSY, 40.75 in. hyd slave cyl, 22 foot 6 inch model

4шт.

16

813399C1

TUBE,0.375" OD, 77" Length

ASSY, 77 in. hyd slave cyl, 31 foot 6 inch model

4шт.

17

879612C1

HOSE

32.5 in. slave hyd cyl

4шт.

18

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg. flared tube 90 deg. tube to slave cyl hose

4шт.

19

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hyd 37 deg. flared tube adjustable straight thread 90 deg. w/nut & back-up washer

4шт.

20

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg. flared tube short swivel slave cylinder

2шт.

21

812367C91

CYLINDER

CYL ASSY, wing wheel slave hyd, Cessna, for components refer to slave hyd cyl, Cessna

2шт.

87423770R

REMAN-HYD CYLINDER

45 INTERNATIONAL HARVESTER VIBRA SHANK CULTIVATOR, Reman for New P/N 812367C91

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

24581R1

PIN

1 x 3.500 hd type 5

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

22

816502C1

STRAP

hose tie

4шт.

23

813266C1

HOSE

slave cylinder return flow

2шт.

24

813267C1

HOSE

master cyl pressure

2шт.

25

614323R2

CLAMP

hydraulic tube

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

142864C92

VALVE

ASSY, check w/teflon seals, for tractors w/o check valve, for components see check valve assy, replaces 108575C91 valve

1шт.

27

810201C1

BAR

valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

28

125914C1

HOSE

1/2 x 31 hyd

2шт.

29

117064C1

HOSE

1/2 x 48 hyd

2шт.
