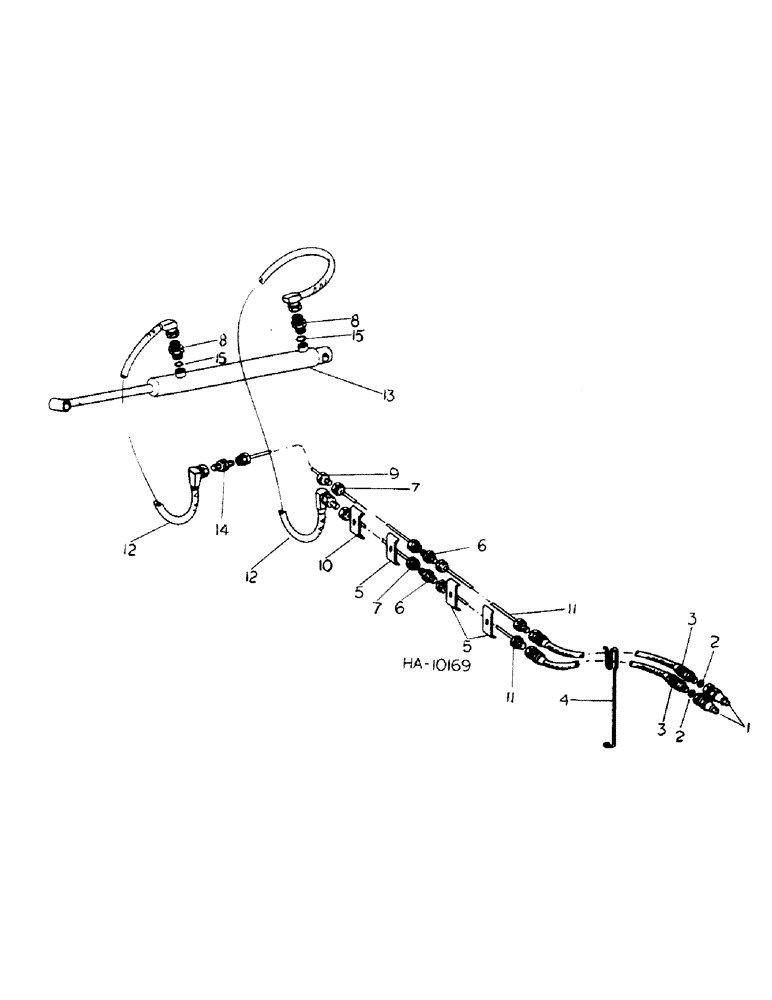

Запчасти Case IH 45 (D-55) - WING LIFT HYDRAULIC SYSTEM, 22 FOOT 6 INCH MODEL BUILT AUGUST 1976 SEASON AND SINCE

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

1шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommended hydraulic parts

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler, recommended hydraulics

2шт.

3

811270C1

HOSE

1/2 x 80 inch long hydraulic

2шт.

4

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

5

614323R2

CLAMP

hydraulic tube

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1 per clamp Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

6

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared tube front to intermediate tube

2шт.

7

813214C1

TUBE

ASSY, 82 inch wing lift hyd cyl pressure & return intermediate

2шт.

8

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 hyd 37 deg flared tube short swivel

2шт.

9

813398C1

TUBE

ASSY, pressure flow corner hyd

1шт.

10

614323R2

CLAMP

hydraulic tube

3шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

813428C1

TUBE

ASSY, 47 inch wing lift hyd cyl pressure and return flow

2шт.

12

HOSE, wing lift with straight nipple for service order 1-100849C1 hose and 1-9410202

1шт.

12

100849C1

HOSE

1/4 x 64 inch wing lift hyd cyl

2шт.

13

813243C91

CYLINDER

CYL ASSY, 3 x 34 DA wing lift, alco

1шт.

13

813244C91

CYLINDER

CYL ASSY, 3 x 34 DA wing lift, prince

1шт.

13

813245C91

CYLINDER

CYL ASSY, 3 x 34 DA wing lift, pneu, hyd, for components refer to wing lift cylinder

1шт.

813452C1

PIN

lift cylinder mounting

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.

21214R1

WASHER

1.156 x 2.000 x .105

8шт.

14

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared tube corner tube to hose

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, wing lift hyd cyl hose

2шт.
