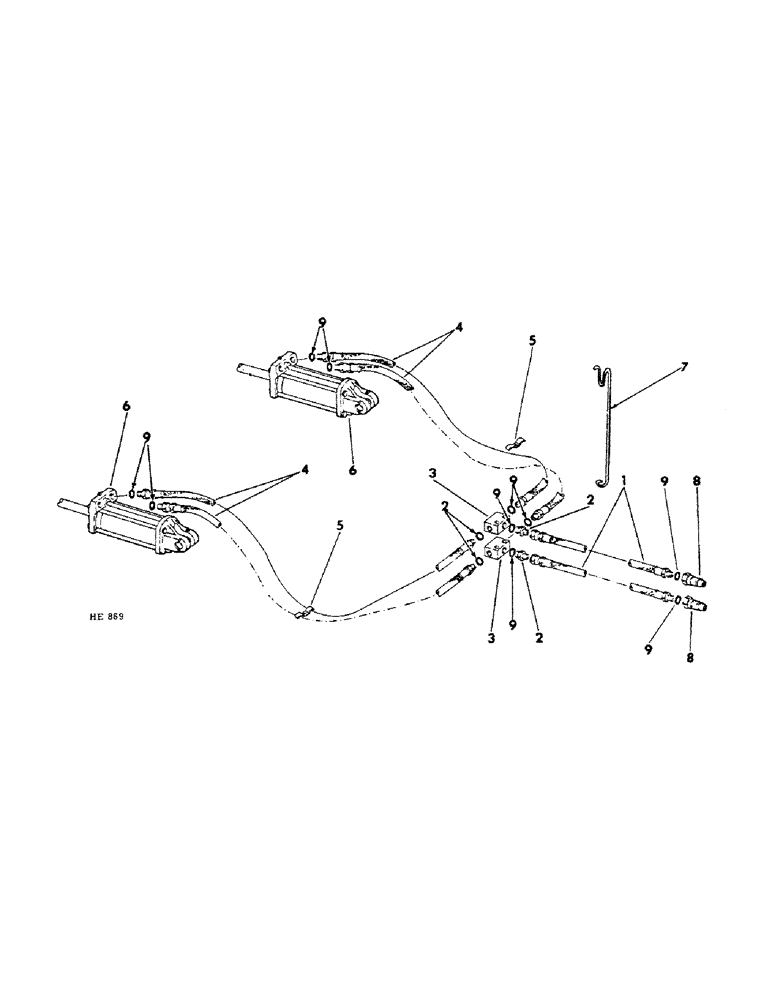

Запчасти Case IH 45 (D-47) - HYD CONNECTIONS,W/HYD WING LIFT,W/SINGLE CTRL HYD,226 MODEL BUILT PRIOR TO THE 1969 SEASON

1

464046R91

HOSE ASSY.

HOSE, 1/2 x 75 inch long tractor, recommended hydraulic parts

2шт.

2

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hyd 37 deg flared tube short swivel

2шт.

3

592392R1

BLOCK, three-way junction

2шт.

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16-18 x 3-1/2 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

372437R91

HOSE

1/2 x 112 inch junction block to remote control hydraulic cyl

4шт.

5

317054R1

CLAMP

hydraulic hose

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

403842R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

6

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

6

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended hydraulic parts, for components refer to remote control hyd cyl

2шт.

7

651793R2

SUPPORT

flexible hyd hose

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

8

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

1шт.

8

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommended hydraulic parts

2шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

12шт.
