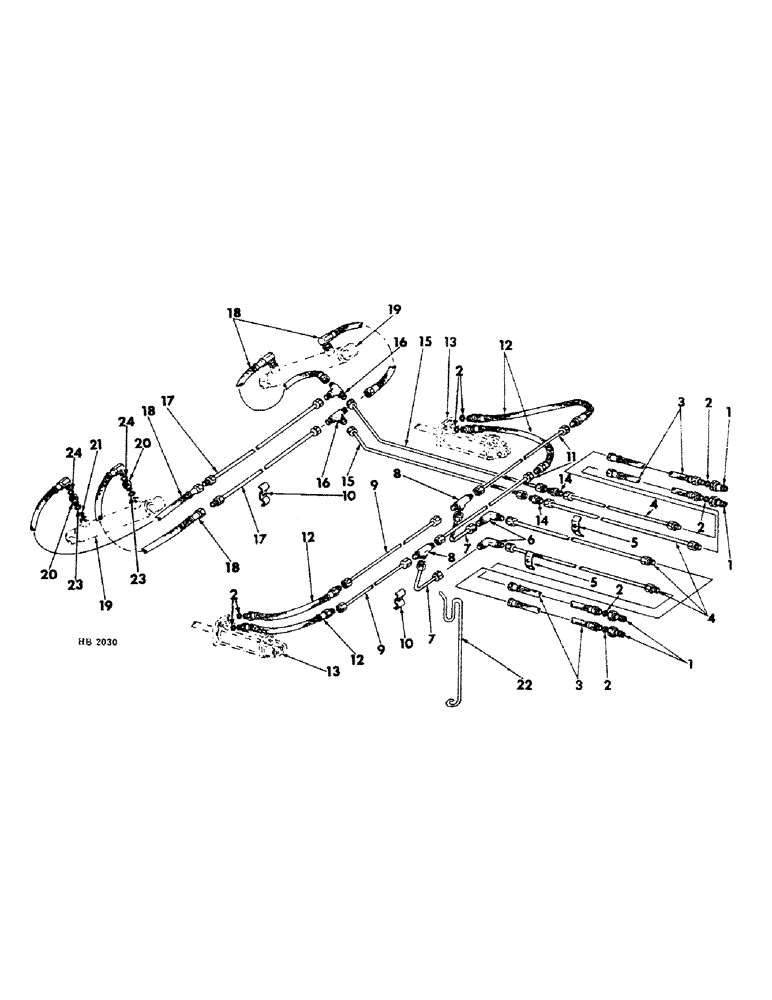

Запчасти Case IH 45 (D-46) - WING LIFT HYD,W/SINGLE MAIN ROCKSHAFT,W/DUAL HYD CTRL,316" MODEL BUILT 1974 SEASON - AUG1976 SEASON

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

4шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommended hydraulic parts

4шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic

8шт.

3

599679R1

HOSE

1/2 x 60 inch long tractor to front hydraulic tubes

4шт.

4

812677C1

TUBE ASSY, 99 inch pressure and return flow 0.5" OD, 94, 5" Length

4шт.

5

614323R2

CLAMP

hydraulic tube

6шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4-20 x 1-3/4 hex-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 37 deg flared tube 90 deg rockshaft lift union

2шт.

7

812676C1

TUBE ASSY, elbow to tee rockshaft 0.5" OD, 5, 2.75" Length

2шт.

8

9402982

TEE,3/4"-16, 37 Degree

3/4-16 flared tube three-way

2шт.

9

812674C1

TUBE ASSY, 84 inch remote control hyd cylinder RH

2шт.

10

588322R2

CLAMP, hydraulic tube dual

9шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

11

812673C1

TUBE ASSY, 24 inch remote control hyd cylinder LH 0.5" OD, 24" Length

2шт.

12

198203H1

HOSE, remote control hyd cyl

4шт.

13

403842R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

13

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

13

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended hydraulic parts, for components refer to remote control hyd cyl

2шт.

14

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube front tube to rear tube

2шт.

15

812678C1

TUBE

ASSY, wing lift cyl front

2шт.

16

9402982

TEE,3/4"-16, 37 Degree

3/4-16 flared tube three-way

2шт.

17

812675C1

TUBE ASSY, 108 inch tee to RH hyd cyl

1шт.

18

811276C1

HOSE

36 inch wing lift hyd cyl

4шт.

19

811888C91

CYLINDER

ASSY, wing lift hydraulic, refer to wing lift hyd cyl

2шт.

594608R1

PIN

hydraulic cylinder

4шт.

119202

PIN

3/8 x 2-1/4 cotter

4шт.

20

610952R1

ADAPTER

UNION, 3/4-16 male to 9/16 female wing lift hyd cyl ports

4шт.

21

811912C1

WASHER

flow retarder disk

2шт.

22

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.
