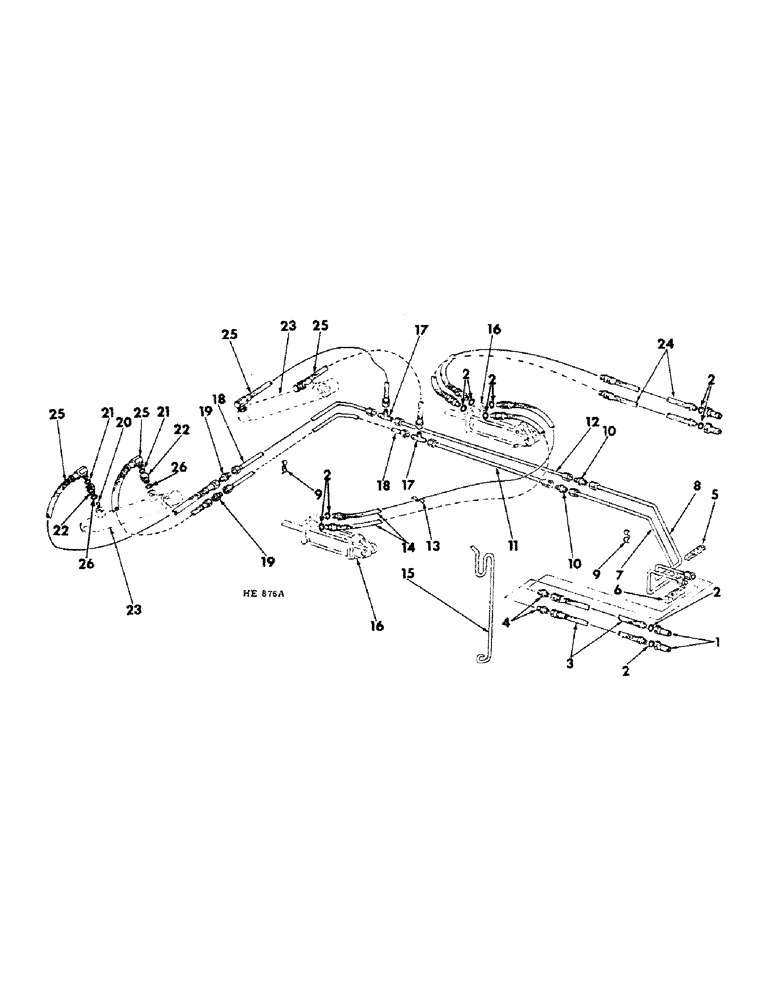

Запчасти Case IH 45 (D-45) - WING LIFT HYD, W/SINGLE MAIN ROCKSHAFT, W/DUAL HYD CTRL, 226" MODEL BUILT 1974 TO AUG 1976 SEASON

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

4шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommmended hydraulic parts

4шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic

12шт.

3

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 x 75 inch long hyd

2шт.

4

478754R1

ADAPTER

UNION, 3/4-16 to 7/8-16 hyd 37 degree flared tube reducing

2шт.

5

811273C1

CLAMP, hydraulic tube upper

1шт.

6

811274C1

CLAMP, hydraulic tube lower

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16-18 x 3 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

599678R11

TUBE ASSY, lower union to wing lift rear tube

1шт.

8

599677R11

TUBE ASSY, upper union to wing lift rear tube

1шт.

9

588322R2

CLAMP, hydraulic tube dual

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube front to rear tube

2шт.

11

599674R11

TUBE ASSY, 69 inch wing lift ctr lower

1шт.

12

599675R11

TUBE ASSY, 72 inch wing lift ctr upper

1шт.

13

317054R1

CLAMP

hydraulic hose dual

3шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

14

372437R91

HOSE

1/2 x 112 inch long LH hyd cyl to RH hyd cyl

2шт.

15

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

16

4038425R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

16

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

16

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended hydraulic parts, for components refer to remote control hyd cyl

1шт.

17

9402982

TEE,3/4"-16, 37 Degree

3/4-16 three-way

2шт.

18

599676R11

TUBE ASSY, wing lift cylinder rear 80" Length

2шт.

19

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared

2шт.

20

811912C1

WASHER

flow retarder disk

2шт.

21

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd lift cylinder hose

4шт.

22

610952R1

ADAPTER

UNION, 3/4-16 to 9/16-18 wing lift hyd cyl front & rear port

4шт.

23

811888C91

CYLINDER

ASSY, wing lift hydraulic, refer to wing lift hyd cyl

2шт.

594608R1

PIN

hydraulic cylinder

4шт.

119202

PIN

3/8 x 2-1/4 cotter

4шт.

24

478706R91

HOSE ASSY.

HOSE, 1/2 x 175 inch long tractor to remote control hyd cyl

2шт.

25

811276C1

HOSE

36 inch long lift cyl

4шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd

4шт.
