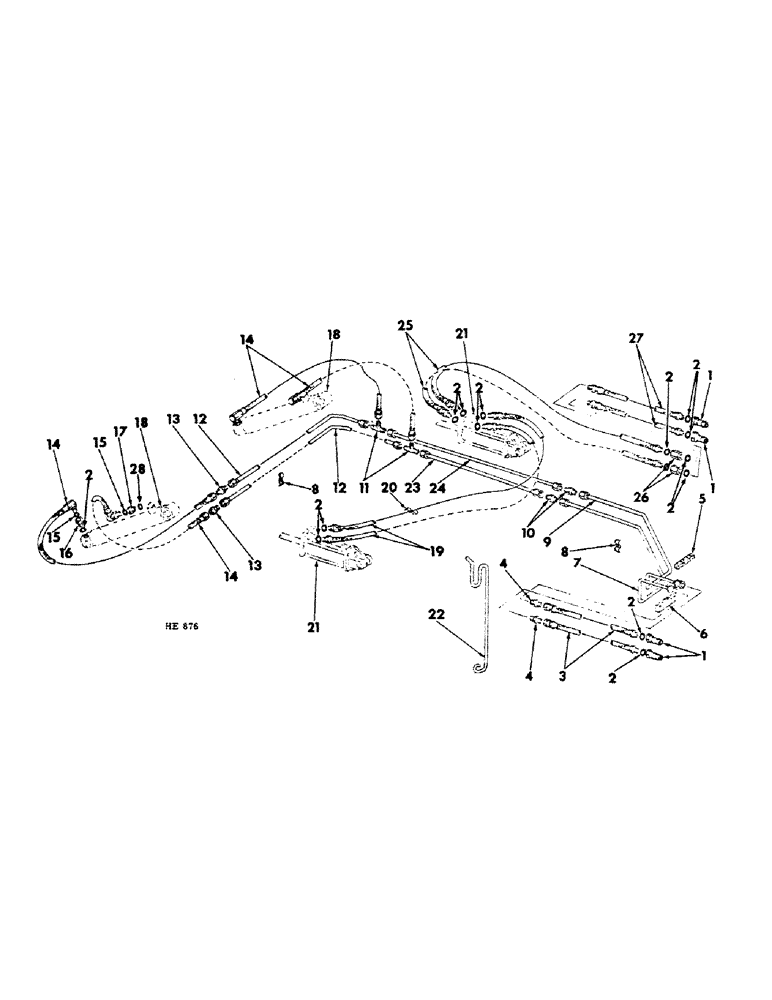

Запчасти Case IH 45 (D-42) - WING LIFT HYDRAULICS, W/SINGLE MAIN ROCKSHAFT, W/DUAL HYDRAULIC CONTROLS, 1969 SEASON TO 1974 SEASON

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

4шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic male, opt w/395149R1, coupler, recommended hydraulic parts

4шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic

14шт.

3

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 x 75 inch long ling hyd, recommended hydraulic parts

2шт.

4

478754R1

ADAPTER

UNION, 3/4-16 to 7/8-16 hyd 37 degree flared tube reducing

2шт.

5

811273C1

CLAMP, hydraulic tube upper

1шт.

6

811274C1

CLAMP, hydraulic tube lower

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16-18 x 3 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

599678R11

TUBE ASSY, lower union to wing lift rear tube, 22 fooot 6 inch model

1шт.

7

811257C11

TUBE ASSY, lower union to wing lift rear tube, 31 foot 6 inch model

1шт.

8

588322R2

CLAMP, hydraulic tube dual

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

599677R11

TUBE ASSY, upper union to wing lift rear tube, 22 foot 6 inch model

1шт.

9

811255C11

TUBE ASSY, upper union to wing lift rear tube, 31 foot 6 inch model

1шт.

10

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube front to rear tube

2шт.

11

9402982

TEE,3/4"-16, 37 Degree

3/4-16 three-way

2шт.

12

599676R11

TUBE ASSY, tee to wing lift hyd cyl, 22 foot 6 inch model 80" Length

2шт.

12

811256C11

TUBE ASSY, tee to wing lift hyd cyl, 31 foot 6 inch model

2шт.

13

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared

2шт.

14

811276C1

HOSE

36 inch wing lift cyl

4шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd lift cylinder hose

4шт.

16

407044R1

UNION

wing lift cyl rear port, 22 foot 6 inch model

2шт.

16

598493R1

UNION, wing lift cyl rear port, 31 foot 6 inch model

2шт.

17

610952R1

ADAPTER

UNION, 3/4-16 to 9/16-18 wing lift hyd cyl front port

2шт.

18

384474R94

CYLINDER ASSY.

CYLINDER, wing lift hydraulic, for components refer to wing lift

2шт.

594608R1

PIN

hydraulic cylinder

4шт.

119202

PIN

3/8 x 2-1/4 cotter

4шт.

19

372437R91

HOSE

1/2 x 112 inch long LH hyd cyl to RH hyd cyl, 22 foot 6 inch model

2шт.

19

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch long LH hyd cyl to RH hyd cyl, 31 foot 6 inch model

2шт.

20

317054R1

CLAMP

hydraulic hose dual

3шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

21

403842R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

21

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

21

546719R91

CYLINDER

ASSY, 3-1/2 x 8 inch DA hyd, for service of this complete order 1-61105C91 hyd cyl

2шт.

21

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended hydraulic parts, for components refer to remote control hyd cyl

2шт.

22

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

23

599674R11

TUBE ASSY, 69 in. wing lift ctr lower, 22 foot 6 inch model

1шт.

23

811254C11

TUBE,1" OD, 95" Length

ASSY, 95 inch wing lift ctr lower, 31 foot 6 inch model

1шт.

24

599675R11

TUBE ASSY, 72 inch wing lift ctr upper, 22 foot 6 inch model

1шт.

24

811253C11

TUBE ASSY, 92 in. wing loft ctr upper, 31 foot 6 inch model 1" OD, 92" Length

1шт.

25

478706R91

HOSE ASSY.

HOSE, 1/2 x 175 inch long hyd coupler to remote control hyd cyl

2шт.

26

584802R1

CONNECTOR, ELEC

UNION, front to rear hyd hose, 31 foot 6 inch model

2шт.

27

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch long front, 31 foot 6 inch model

2шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd

2шт.
