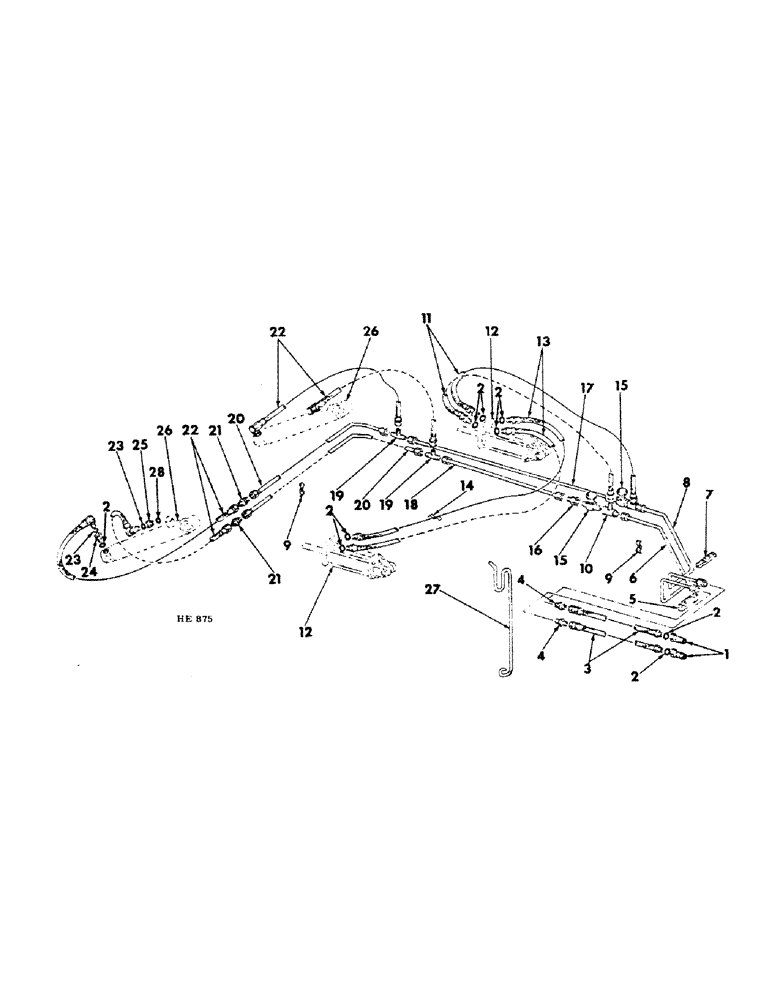

Запчасти Case IH 45 (D-40) - WING LIFT HYDRAULICS, W/SINGLE MAIN ROCKSHAFT, W/SINGLE HYDRAULIC CONTROL 1969 SEASON TO 1974 SEASON

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic male, opt w/395149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic

10шт.

3

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 x 75 inch long hyd, recommended hydraulic parts

2шт.

4

478754R1

ADAPTER

UNION, 3/4-16 to 7/8-16 hyd 37 degree flared tube reducing

2шт.

5

811274C1

CLAMP, hydraulic tube lower

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16-18 x 3 hex-hd

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

599678R11

TUBE ASSY, union to valve cut-off, 22 foot 6 inch model

1шт.

6

811257C11

TUBE ASSY, union to valve cut-off, 31 foot 6 inch model

1шт.

7

811273C1

CLAMP, hydraulic tube upper

1шт.

180113

SPRING

5/16-18 x 3 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

599677R11

TUBE ASSY, union to valve cut-off, 22 foot 6 inch model

1шт.

8

811255C11

TUBE ASSY, union to valve cut-off, 31 foot 6 inch model

1шт.

9

588322R2

CLAMP, hydraulic tube dual

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

9403138

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Run

3/4-16 three-way

2шт.

11

599679R1

HOSE

1/2 x 60 inch long tee to LH remote control hyd fyl, 22 foot 6 inch model

2шт.

11

811270C1

HOSE

1/2 x 80 inch long tee to LH remote control hyd cyl, 31 foot 6 inch model

2шт.

12

403842R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

12

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

12

546719R91

CYLINDER

ASSY, 3-1/2 x 8 DA hyd, for service of this complete cyl order 1-61105C91, hyd cyl

2шт.

12

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended hydraulic parts, for components refer to remote control hyd cyl

2шт.

13

372437R91

HOSE

1/2 x 112 inch long LH hyd cyl to RH hyd cyl, 22 foot 6 inch model

2шт.

13

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch long LH hyd cyl to RH hyd cyl, 31 foot 6 inch model

2шт.

14

317054R1

CLAMP

hydraulic hose dual

3шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

675275R91

VALVE

ASSY, hyd cut-off

2шт.

16

9402748

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, 3/4-16 valve to pipe

2шт.

17

599673R11

TUBE

ASSY, 68 inch cut-off valve upper to wing lift hyd cyl tee, 22 foot 6 inch model

1шт.

17

811251C11

TUBE ASSY, 88 inch cut-off valve upper to wing lift hyd cyl tee, 31 foot 6 inch model 1" OD, 87.7" Length

1шт.

18

599672R11

TUBE ASSY, 65 inch cut-off valve lower to wing lift hyd cyl tee, 22 foot 6 inch model 1" OD, 65" Length

1шт.

18

811252C11

TUBE ASSY, 91 inch cut-off valve lower to wing lift hyd cyl tee, 31 foot 6 inch model 1" OD, 90.7" Length

1шт.

19

9402982

TEE,3/4"-16, 37 Degree

3/4-16 three-way

2шт.

20

599676R11

TUBE ASSY, tee to wing lift hyd cyl, 22 foot 6 inch model 80" Length

2шт.

20

811256C11

TUBE ASSY, tee to wing lift hyd cyl, 31 foot 6 inch model

2шт.

21

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared

2шт.

22

811276C1

HOSE

36 inch long wing lift cyl

4шт.

23

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd lift cylinder hose

4шт.

24

407044R1

UNION

wing lift cyl rear port, 22 foot 6 inch model

2шт.

24

598493R1

UNION, wing lift cyl rear port, 31 foot 6 inch model

2шт.

25

610952R1

ADAPTER

UNION, 3/4-16 to 9/16-18 wing lift hyd cyl front port

2шт.

26

384474R94

CYLINDER ASSY.

CYLINDER, wing lift hydraulic, refer to wing lift hyd cyl

2шт.

594608R1

PIN

hydraulic cylinder

4шт.

119202

PIN

3/8 x 2-1/4 cotter

4шт.

27

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd

2шт.
