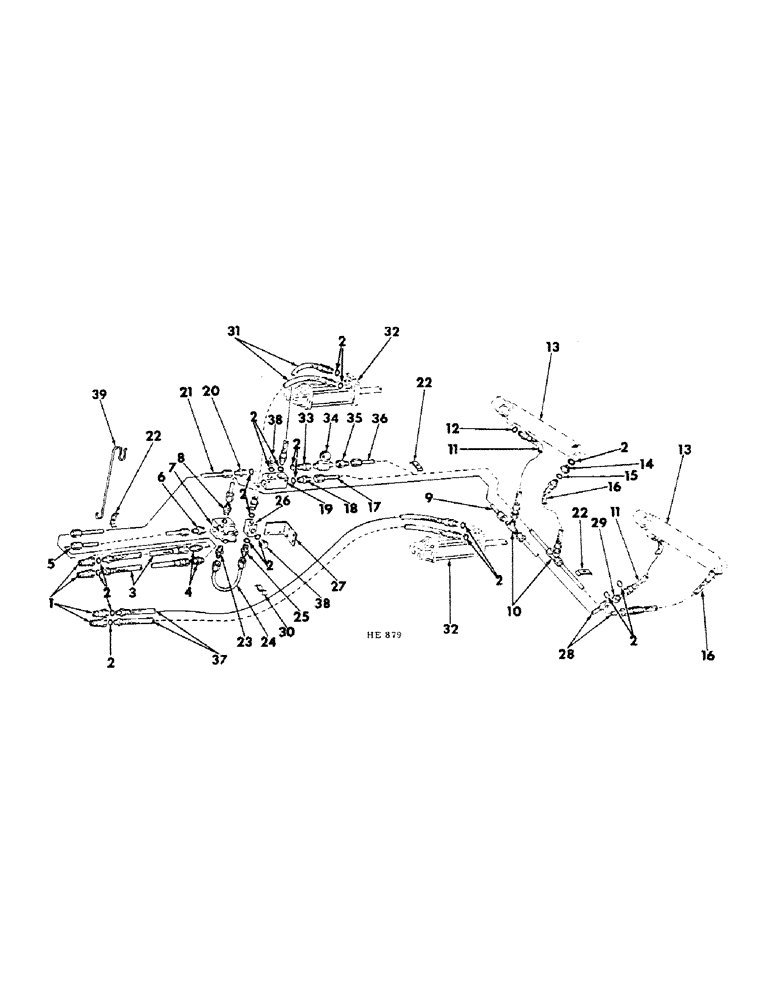

Запчасти Case IH 45 (D-38) - WING LIFT HYDRAULICS, W/LEVER TYPE DIVERTER VALVE, W/DUAL HYD CONTROL, 1968 TO 69 SEASON

1

395149R1

QUICK MALE COUPLING

COUPLER, hyd male, opt w/544787R91, coupler

4шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hyd male, opt w/395149R1, coupler, recommended hydraulic parts

4шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

20шт.

3

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 x 75 inch long hyd, recommended hydraulic parts

2шт.

4

478754R1

ADAPTER

UNION, 3/4-16 to 7/8-16 hyd 37 degree flared tube reducing

2шт.

5

592395R11

TUBE ASSY, pressure flow hyd

1шт.

6

610774R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, 3/8 to 9/16 tube assy to diverter valve reducing

1шт.

7

598157R91

VALVE ASSY, lever type diverter, refer to hydraulic diverter valve

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

9402683

CONNECTOR, ELEC

CONNECTOR, 3/8 to 3/4 diverter valve to wing lift hyd cyl tube assy

1шт.

9

592400R11

TUBE ASSY, 77 inch pressure hydraulic

1шт.

10

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 three-way

2шт.

11

592402R91

HOSE, 26 inch wing lift cyl pressure

2шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

cyl pressure hose

2шт.

13

384474R94

CYLINDER ASSY.

CYLINDER, wing lift hydraulic, for components refer to wing lift hyd cyl

2шт.

594608R1

PIN

hydraulic cylinder

4шт.

119202

PIN

3/8 x 2-1/4 cotter

4шт.

14

407044R1

UNION

REDUCER, 7/8-16 to 9/16-18 37 degree flared tube hyd cyl

2шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, lift cylinder return hose

2шт.

16

607737R91

HOSE, 28 inch wing lift cyl return

2шт.

17

592401R11

TUBE ASSY, 71 inch return flow hyd

1шт.

18

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-16 to 9/16-18 37 degree flared tube 4-way block

1шт.

19

592398R1

FLOW DIVIDER

BLOCK, 4-way hyd junction

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, junction block return flow

1шт.

21

592396R11

TUBE ASSY, return flow hyd

1шт.

22

614323R2

CLAMP

hydraulic tube

6шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1/4-16 x 1-1/4 hex-hd

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1/4-16 hex

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

21549R1

WASHER

.281 x .750 x .042

6шт.

23

9402683

CONNECTOR, ELEC

CONNECTOR, 3/8 to 3/4 diverter valve to 3- way junction block tube

1шт.

24

598159R1

TUBE ASSY, valve to junction block

1шт.

25

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3-way junction block to 3- way junction block tube

1шт.

26

592392R1

BLOCK, 3-way hyd junction

1шт.

180735

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16-18 x 1-3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

598158R1

ANGLE, diverter valve mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

28

592403R11

TUBE ASSY, 74 inch LH lift cyl pressure and return flow hyd 0.375" OD, 71, 3" Length

2шт.

29

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 37 degree flared tube pressure and return flow

2шт.

30

317054R1

CLAMP

hydraulic hose

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

31

592399R91

HOSE

1/2 x 49 inch long remote control RH hyd cyl to 3-way and 4-way junction blocks

2шт.

32

403842R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

32

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

32

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended parts, for components refer to remote control hyd cyl

2шт.

33

599697R1

CONNECTOR, cut-off valve to 4-way junction block, machines w/hyd cut-off valve

1шт.

34

675275R91

VALVE

ASSY, hyd cut-off, machines w/hyd cut-off valve

1шт.

35

610776R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, Fem Pipe

CONNECTOR, cut-off valve to lift cyl return tube assy, machines w/hyd cut-off valve

1шт.

36

599711R11

TUBE ASSY, return flow hyd, machines w/hyd cut-off valve 0.375" OD, 68.4, 2.8" Length

1шт.

37

372437R91

HOSE

1/2 x 112 inch long remote control LH hyd, Serial Range: cyl-coupler

2шт.

38

9410360

PLUG

3-way & 4-way block boss

2шт.

39

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.
