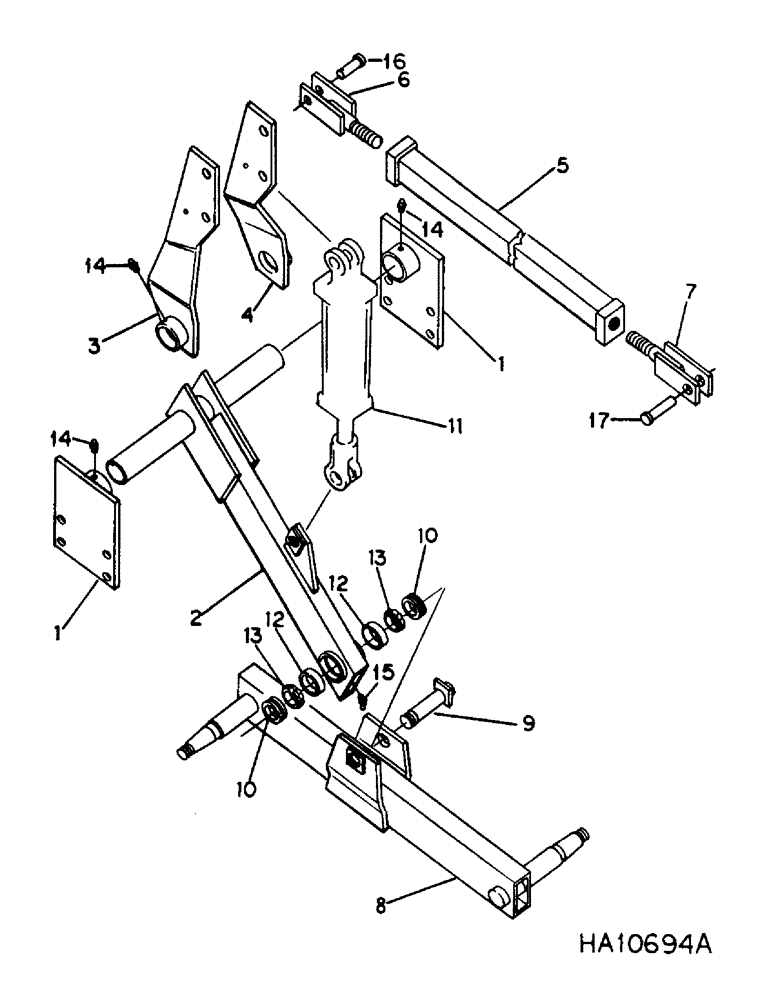

Запчасти Case IH 5500 (G-22) - WING FRAME DEPTH CONTROL ROCKSHAFT & AXLE, WING TYPE, MACHINES W/ AXLE PIVOT THROUGH ROCKSHAFT TUBE

1

813665C1

SUPPORT

ASSY, wing frame rockshaft

4шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

16шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

16шт.

2

813661C1

ROCKSHAFT

ASSY, 25 in. reg clearance, For service replacement order

2шт.

1284048C1

SHAFT ASSY.

ROCKSHAFT ASSY, 25 in. regular clearance

1шт.

1284064C92

TUBE NUT

TUBE ASSY, bogie wheel axle

1шт.

1279363C2

PIN,50.8mm OD x 165mm L

pivot

1шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

2

813699C1

ROCKSHAFT

ASSY, 32 in. high clearance, For service replacement order

2шт.

1284049C1

ROCKSHAFT

ASSY, 32 in. high clearance

1шт.

1284064C92

TUBE NUT

TUBE ASSY, bogie wheel axle

1шт.

1279363C2

PIN,50.8mm OD x 165mm L

pivot

1шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

3

813711C1

SUPPORT

ASSY, RH-25 in. clear

2шт.

3

813709C1

SUPPORT

ASSY, RH-32 in. clear

2шт.

4

813710C1

SUPPORT

ASSY, LH-25 in. clear

2шт.

4

813708C1

SUPPORT

ASSY, LH-32 in. clear

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5, 1 per support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

5

811981C1

ROD

ASSY, cyl support truss, 25 in. clearance, Replaces 812563C1

2шт.

5

812561C1

ROD

ASSY, cyl support truss, 32 in. high clearance

2шт.

6

811975C1

CLEVIS

ASSY, truss rod LH

2шт.

7

811976C1

CLEVIS

ASSY, truss rod RH

2шт.

9849649

NUT,1 1/4"-7, G5

2шт.

8

813082C91

NO LONGER SERVICED

AXLE ASSY, wing frame LH, Order package, 1284360C92

1шт.

8

813083C91

NO LONGER SERVICED

AXLE ASSY, wing frame RH, Order package, 1284360C92, Includes 1-619373R1 washer 1-70120 nut & 1-103388 pin

1шт.

619373R1

WASHER

.906 x 2.000 x .164 pln, 1 per axle

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam, 1 per axle

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 per axle 1/8" x 1 3/4"

1шт.

9

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

10

813159C2

SEAL

ASSY, axle pivot

4шт.

11

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, depth control slave, Replaces 149969C92 and 813528C91, Refer to cyl-1 for components

2шт.

11

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

11

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

80117C2

SEAL KIT

o-ring and seal service (Replaces 80115C2)

1шт.

810751C1

PIN

1 x 3.5 std-hd-dld spcl

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

12

651817R1

BEARING CUP

CUP, axle pivot bearing

4шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing

4шт.

14

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

8шт.

15

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub

2шт.

16

25419R1

PIN

1 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

17

22457R1

HEADED PIN,1" x 4"

PIN, 1 x 4 hd type 1

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

1284360C92

KIT

PACKAGE, bogie wheel axle, Replaces axles, 813082C91 and 813083C91, Consists of

1шт.

1284064C92

TUBE NUT

TUBE ASSY, bogie wheel axle

1шт.

NSS

NOT SOLD SEPARAT

PLATE, rockshaft pivot

2шт.

1279363C2

PIN,50.8mm OD x 165mm L

pivot

1шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, installing

1шт.
