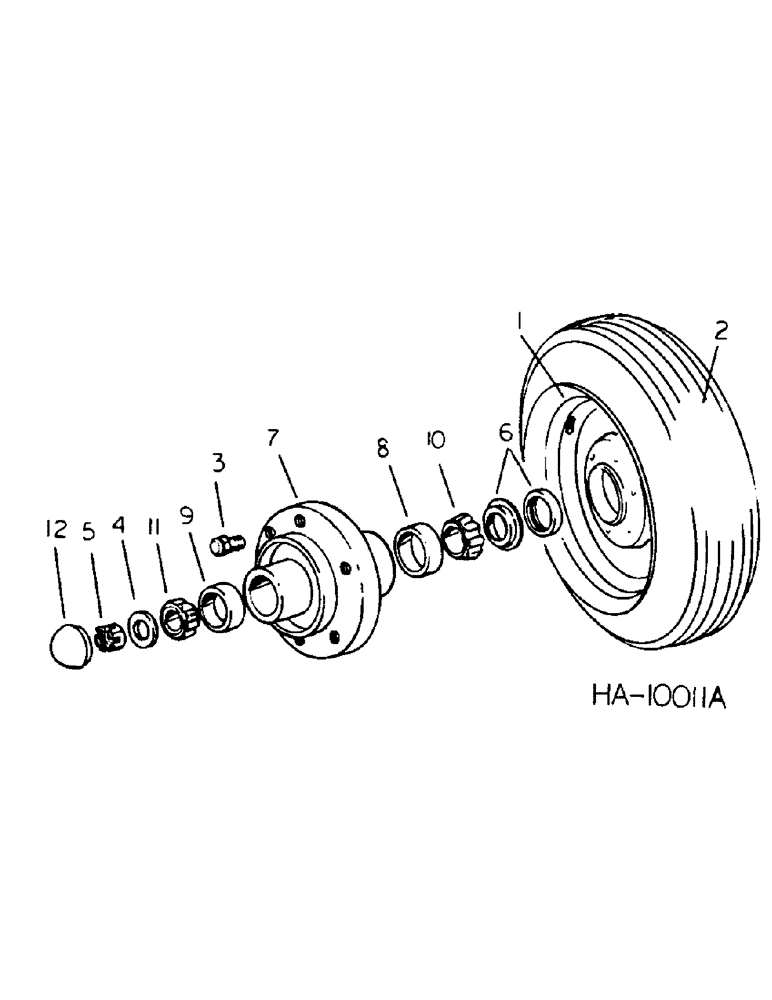

Запчасти Case IH 5500 (G-17) - WING FRAME WHEEL AND HUB, WING TYPE

1

622192R91

WHEEL

15 x 5 KB

4шт.

2

TIRE, 7.60-15 4 pr L-1 tubeless

4шт.

810769C1

VALVE

steel tubeless tire

4шт.

3

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel 1/2-20 x 1-1/2 inch

24шт.

4

619373R1

WASHER

.906 x 2.000 x .164

4шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 sltd hex

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

6

606556R91

OIL SEAL

SEAL W/SLEEVE

4шт.

7

606468R21

HUB

ASSY, wheel, Includes 1-663558R1, cup and 1-651817R1 cup

4шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

4шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

4шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

4шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

4шт.

12

663906R1

CAP

wheel hub

4шт.
