Запчасти Case IH 5500 (G-13) - FRAME STUB EXTENSIONS AND BRACES, WING TYPE

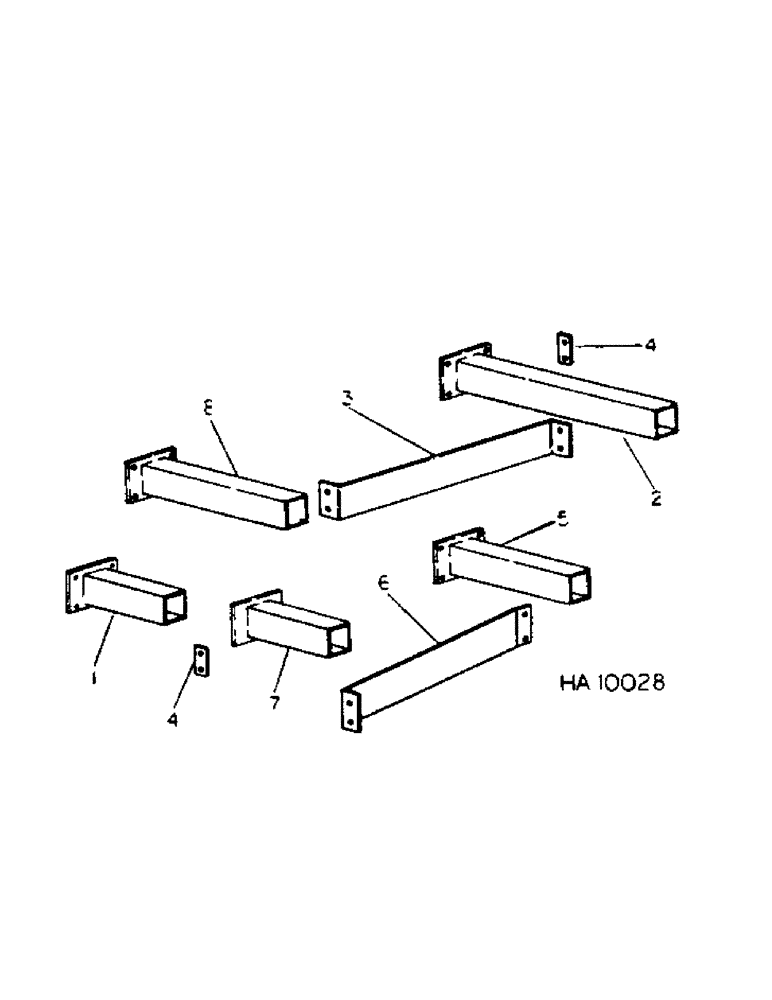

Схема запчастей Case IH 5500 - (G-13) - FRAME STUB EXTENSIONS AND BRACES, WING TYPE

Артикул

Название

Примечание

Количество

1

608331R91

EXTENSION

ASSY, one foot frame

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

2

608332R92

EXTENSION

ASSY, two foot frame

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

3

608338R1

STRAP

extension connecting, Use w/608332R92

1шт.

18728R1

BOLT, 5/8 x 6 crg type 1 Short NK, 5/8"-11 x 6", G2

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

608339R1

BLOCK

BAR, extension clamping, Use w/608332R92

2шт.

5

811020C2

EXTENSION

ASSY, 3 foot frame

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

6

811023C1

BRACE

extension connecting 3 ft. frame

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

7

NOT USED THIS APPLICATION

1шт.

8

NOT USED THIS APPLICATION

1шт.

Выбрано товаров: 19
