(B-04) - QUICK COUPLER HITCH ADAPTOR, DIRECT MOUNTED, THREE RANK MODELS

Запчасти Case IH 5500 (B-04) - QUICK COUPLER HITCH ADAPTOR, DIRECT MOUNTED, THREE RANK MODELS

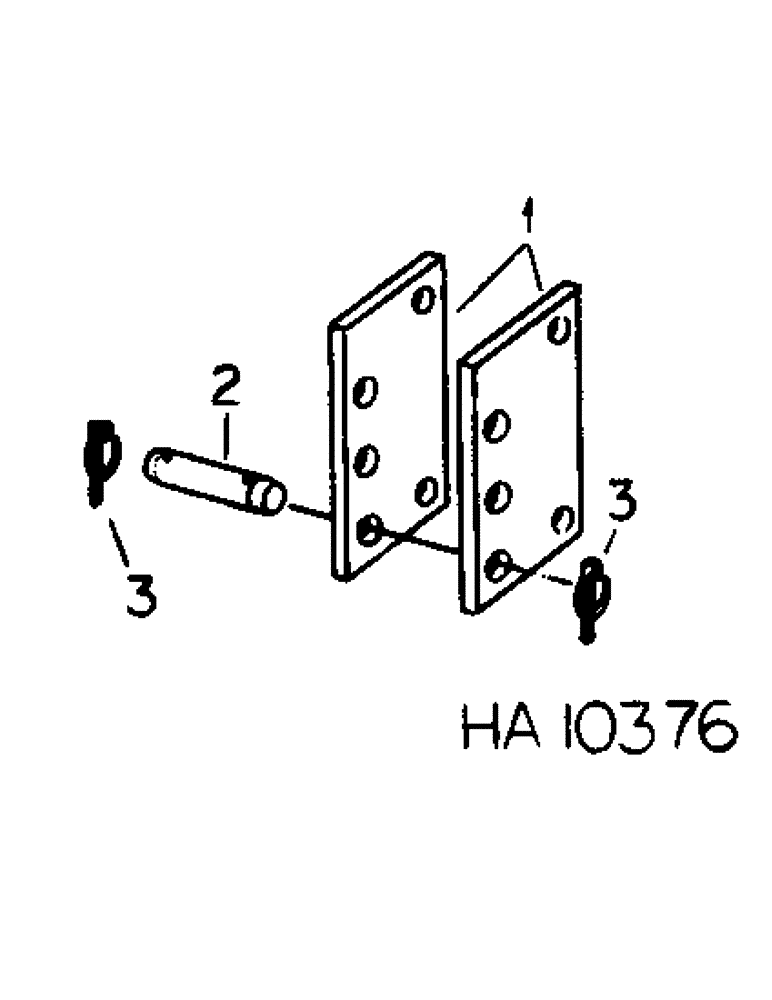

Схема запчастей Case IH 5500 - (B-04) - QUICK COUPLER HITCH ADAPTOR, DIRECT MOUNTED, THREE RANK MODELS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

812031C1

BAR

hitch center pin

2шт.

18731R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 2

BOLT, 3/4 x 2 zn crg

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

812032C1

PIN

hitch center

1шт.

3

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN ASSY, locking

2шт.
