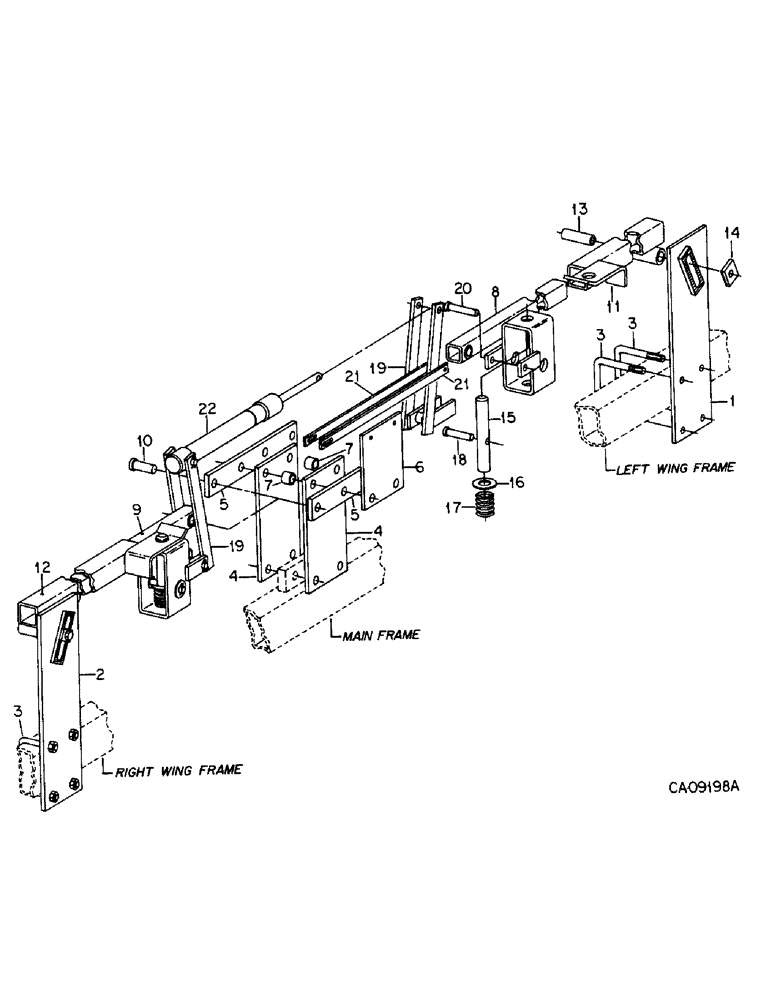

Запчасти Case IH 5500 (G-10) - AUTOMATIC WING TRANSPORT LOCK, WING TYPE, MACHINES BUILT AFTER NOVEMBER 1984

1

813096C1

SUPPORT

ASSY, transport lock outer LH

1шт.

2

813097C1

SUPPORT

ASSY, transport lock outer RH

1шт.

3

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT, support mounting

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

4

1284163C1

PLATE

support

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

3/4 x 3-1/2 znd type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

1284164C1

BAR

wing support

2шт.

6

1284165C1

PLATE

lever stop

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4 x 3-1/2 znd type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

7

355682R1

SPACER,3/4" Pipe x 3/4"

3/4 x 3/4 in. standard pipe

2шт.

8

1284176C1

TUBE,164 mm Length

ASSY, inner lock-out LH

1шт.

9

1284177C1

TUBE

ASSY, inner lock-out RH

1шт.

10

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

813150C3

TUBE,1242 mm Length

ASSY, outer LH

1шт.

12

813151C3

TUBE,1242 mm Length

ASSY, outer RH

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 znd type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

13

813099C1

SPACER

outer tube pivot

2шт.

14

813145C1

ADJUSTER

outer tube

2шт.

15

1284086C1

PIN

transport locking

2шт.

16

131019

SWEEP

1.062 x 2.000 x .108

2шт.

17

656345C2

SPRING

lock pin

2шт.

18

23172R1

PIN

1/2 x 3.750 x 1.500 x .105

4шт.

460908R1

WASHER

.531 x 1.500 x .105

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

19

1284082C2

LEVER

ASSY, transport lock

2шт.

20

22388R1

HEADED PIN,1/2" x 4"

PIN, 1/2 x 4, hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21

91251C1

BAR

restraining

2шт.

568257R1

SPACER,1/2" Tube x 3/8"

1/2 x .375 tube

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

4шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 cad p/t lock type 5

4шт.

22

1286364C91

CYLINDER ASSY.

CYLINDER ASSY, 1.5 x 4 in. double acting transport lock hydraulic, Replaces 811998C91, Refer to cyl-1 for components

1шт.

85020C1

SEAL KIT

KIT, o-ring and seal service

1шт.

23171R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3 hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.
