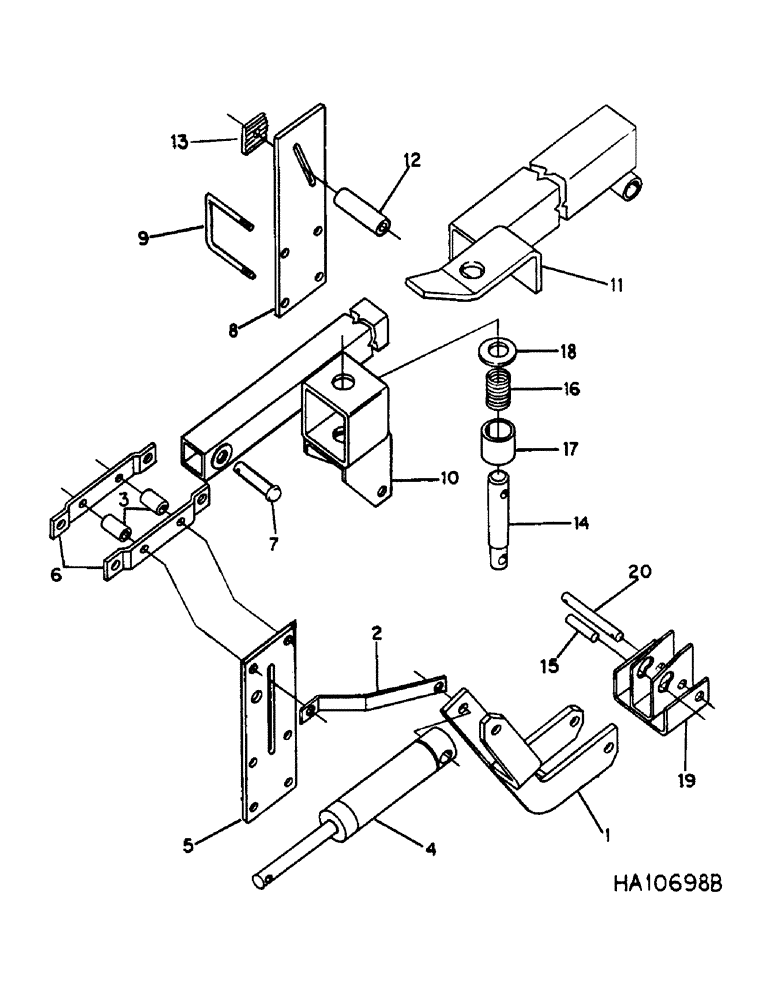

Запчасти Case IH 5500 (G-08) - AUTOMATIC WING TRANSPORT LOCK, WING TYPE, MACHINES BUILT PRIOR TO NOVEMBER 1984

1

813048C2

LEVER

ASSY, transport lock LH

1шт.

1

813049C2

LEVER

ASSY, transport lock RH

1шт.

2

810384C1

SUPPORT

lock tie

2шт.

178374R1

WASHER

.531 x 1.250 x .054

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

1шт.

3

651958R1

SPACER,3/4" Pipe x 2 1/4"

3/4 x 2.250 std pipe

2шт.

4

1286364C91

CYLINDER ASSY.

CYLINDER ASSY, 1.5 x 4 in. double acting transport lock hydraulic, Replaces 810747C91 and 811998C91, Refer to cyl-1 for components

1шт.

85020C1

SEAL KIT

KIT, o-ring and seal service

1шт.

23171R1

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3 hd type 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

811924C1

BAR

lock centre support

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

4.шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

6

810457C1

SUPPORT

tube centre

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

7

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2.750 hd type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

8

813096C1

SUPPORT

ASSY, outer LH

1шт.

8

813097C1

SUPPORT

ASSY, outer RH

1шт.

9

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT, support mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

813177C1

TUBE,164 mm Length

ASSY, inner LH, Order 1284176C1

1шт.

813178C1

TUBE,164 mm Length

ASSY, outer RH, Order 1284177C1

1шт.

11

813150C3

TUBE,1242 mm Length

ASSY, outer LH

1шт.

11

813151C3

TUBE,1242 mm Length

ASSY, inner RH

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

12

813099C1

SPACER

outer tube pivot

2шт.

13

813145C1

ADJUSTER

outer tube

2шт.

14

813102C1

PIN

locking

2шт.

178374R1

WASHER

.531 x 1.250 x .054, Use as required

4шт.

15

813103C1

PIN

pivot

2шт.

16

656345C2

SPRING

locking pin

2шт.

17

811925C1

SPACER

locking pin

2шт.

18

`496-21106

WASHER, 1.0612 x 2.000 x .108

2шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

19

813142C2

SUPPORT

ASSY, trans lock

2шт.

20

813100C1

PIN

arm pivot

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.
