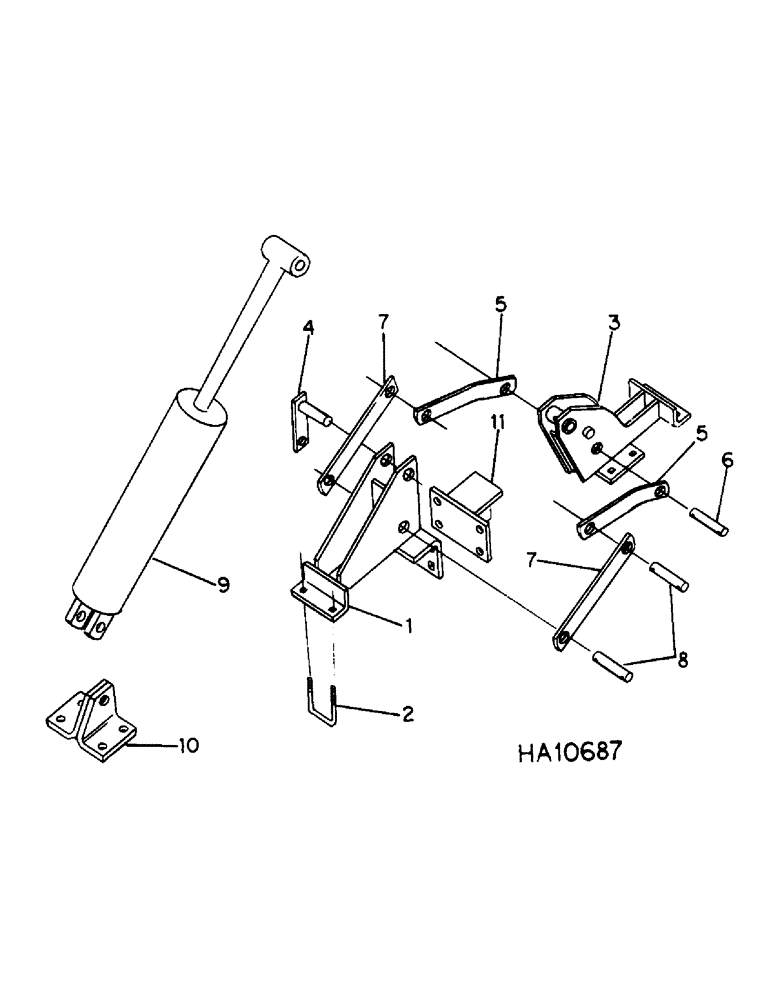

Запчасти Case IH 5500 (G-07) - REAR HINGE, 39 FOOT DOUBLE FOLD, WING TYPE

1

813644C1

HINGE

ASSY, wing frame inner

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hinge support

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

32шт.

3

813652C1

HINGE

ASSY, wing frame outer rear

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 pipe taper drive thd lub

4шт.

4

811958C1

PIN

ASSY, hinge

2шт.

25540R1

WASHER,1 1/16" x 2" x .134", HDN

1.062 x 2.000 x .134 phc hdn

4шт.

5

811963C1

BAR

wing lift

4шт.

6

810750C1

PIN

wing lift pivot

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

7

813191C1

BAR

ARM, wing lift

4шт.

8

811962C1

PIN

lift arm and lever pivot

4шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

8шт.

614451R1

WASHER

1.031 x 1.750 x .105

14шт.

609836R1

WASHER

1.031 x 1.750 x .054

8шт.

9

224787C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x18 in. double acting wing lift hydraulic, Replaces 810383C91 and 810764C91, Refer to cyl-1 for components

2шт.

84919C2

GASKET KIT

KIT, o-ring and seal service

1шт.

810751C1

PIN

cylinder mounting

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

10

813649C1

SUPPORT

ASSY, wing lift cylinder

2шт.

11

812373C1

STOP

ASSY, frame

4шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 type 5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.
