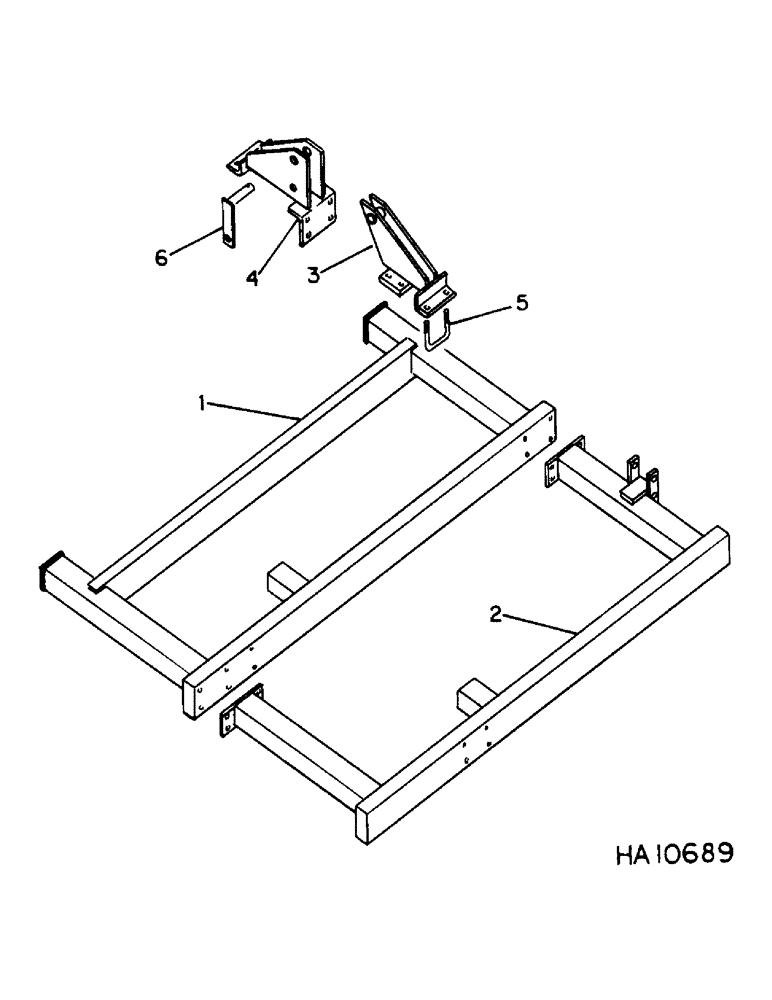

Запчасти Case IH 5500 (G-05) - SECONDARY WING FRAMES AND FRONT HINGE, WING TYPE, 39 FOOT AND 45 FOOT DOUBLE FOLD

1

813618C1

FRAME

ASSY, second wing

2шт.

2

813614C1

FRAME

ASSY, extension RH, 45 ft.

1шт.

2

813613C1

FRAME

ASSY, extension LH, 45 ft.

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

16шт.

3

812357C1

HINGE

ASSY, outer front

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5, 4 per hinge

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5, 1 per bolt

1шт.

4

813644C1

HINGE

ASSY, wing frame inner

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hinge support

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

6

811958C1

PIN

ASSY, hinge

2шт.

25540R1

WASHER,1 1/16" x 2" x .134", HDN

1.062 x 2.000 x 1.34 phc hdn

4шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 znd type 5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.
