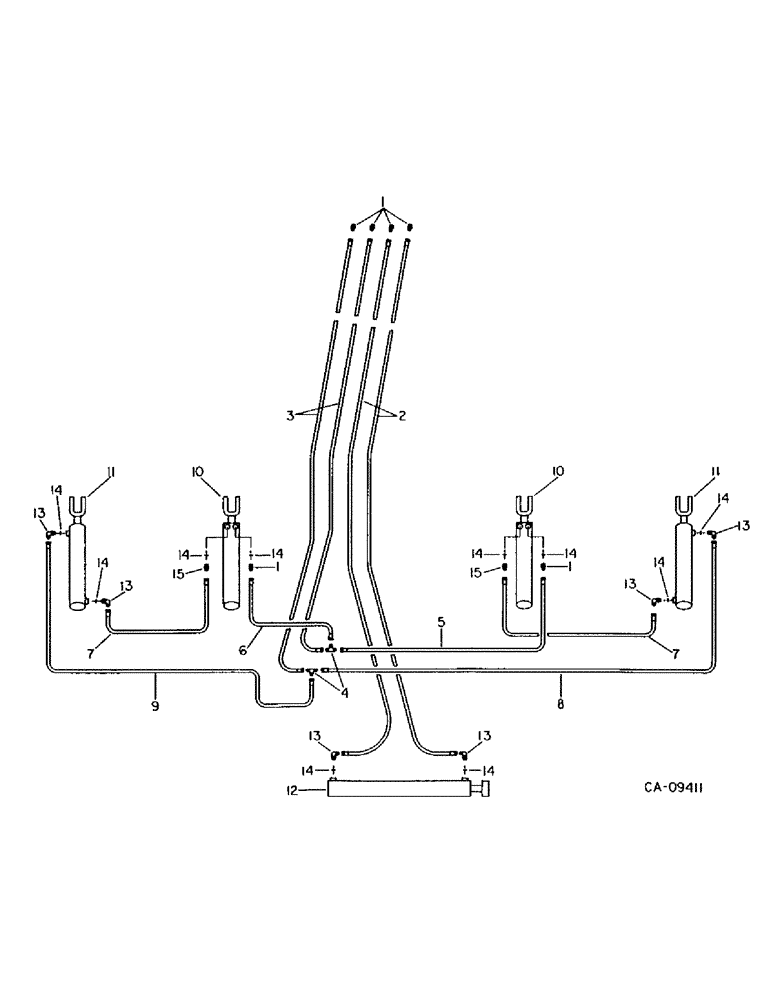

Запчасти Case IH 5500 (F-25) - DEPTH CONTROL AND WING LIFT HYD. SYSTEM, WING TYPE, HYD. COUPLERS, MACHINES BUILT 1986 AND SINCE

1

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/2 sht

6шт.

2

1284266C1

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 305 in. hydraulic front

2шт.

3

133933C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 260 in. hydraulic

2шт.

4

9402981

SHAFT

3/8 C-Z hyd flared three way

2шт.

5

129671C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 105 in. RH master cylinder pressure

1шт.

6

1284315C1

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 65 in. LH master cylinder pressure

1шт.

7

139655C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 155 in. master cylinder to slave cylinder hyd

2шт.

8

1284314C1

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 235 in. RH slave cylinder return

1шт.

9

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE ASSY, 3/8 x 185 in. LH slave cylinder return

1шт.

10

149950C92

CYLINDER

ASSY, 4.25 x 8 in. double acting hydraulic, depth control master, Replaces 813526C91, Refer to cyl-1 for components

2шт.

1252009C2

SEAL KIT

o-ring and seal service

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, L

2шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

2шт.

810751C1

PIN

1 x 3-1/2 in. std-hd-dld special

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

11

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4-1/2 x 34 in. double acting hydraulic, wing lift Replaces 85140C91, Refer to cyl-1 for components

2шт.

80117C2

SEAL KIT

o-ring and seal service

1шт.

810751C1

PIN

1 x 3-1/2 in. std-hd-dld special

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

12

1282421C91

CYLINDER ASSY.

CYLINDER ASSY, 4-1/2 x 34 in. double acting hydraulic, wing lift, Replaces 85140C91, Refer to cyl-1 for components

1шт.

85124C1

SEAL KIT

o-ring and seal service

1шт.

810048C1

PIN

lift cylinder mounting

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

20885R1

WASHER

1.156 x 2.000 x .054

2шт.

13

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

6шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

10шт.

15

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/2 sht, Required for cylinder 149950C92

2шт.

15

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D, Required for cylinder 813526C91

2шт.

129083R1

CLAMP

.625 dia znp coated med clo, hydraulic hose

20шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

306132C1

CABLE TIE,14.5" L

STRAP, hydraulic hose tie, 14.80 in. long

16шт.

813579C1

CABLE TIE

STRAP, hydraulic hose tie, heavy

12шт.

395149R1

QUICK MALE COUPLING

COUPLER, poppet type, 7/8-14 thread

1шт.

544787R91

COUPLING, BREAK AWAY

COUPLER, self sealing type, 7/8-14 thread

1шт.

1272399C2

QUICK MALE COUPLING

COUPLER, self sealing type, ISO standard 7/8-14 thread

1шт.

1285718C2

QUICK MALE COUPLING

COUPLER, self sealing type, ISO standard 3/4-16 thread

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, Use on couplers with 7/8-12 threads

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, Use on couplers with 3/4-16 threads

1шт.

407045R1

FITTING

BUSHING, 3/4-16 str thd x 7/8-14 str thd, Used to adapt 3/4-16 hose fitting to 7/8-14 coupling

1шт.

407545R1

FITTING

BUSHING, reducer, 7/8-14 str thd x 3/4-16 str thd, Used to adapt 7/8-14 hose fitting to 3/4-16 coupling

1шт.
