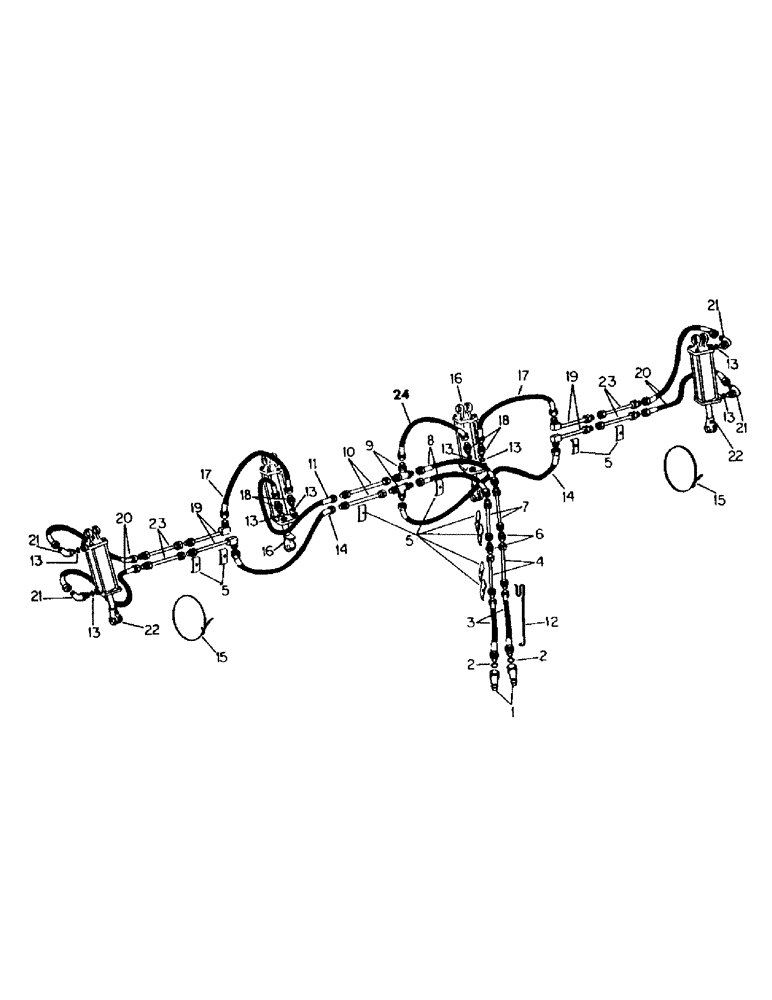

Запчасти Case IH 5500 (F-23) - DEPTH CONTROL HYD. SYSTEM, WING TYPE, WITH BOLTED TYPE CYLINDER, MACHINES BUILT 1980 THROUGH 1985

1

COUPLER, hydraulic hose male, Refer to hydraulic couplers unit for details

2шт.

2

O-RING, hydraulic coupler, Refer to hydraulic couplers unit for details

2шт.

3

195504C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 80 in. hydraulic front, Replaces 811270C1, by also ordering connector, 935433R1, nut, 9403528 and reducer, 9403400

2шт.

4

129671C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 105 in. depth control hydraulic, Replaces tube, 813261C1, by also ordering connector, 1284305C1, nut 9403528 and reducer, 9403400

2шт.

5

614323R2

CLAMP

hydraulic tube

6шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 37 deg flared tube

2шт.

7

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE ASSY, 3/8 x 50 in. hydraulic front extension, Replaces tube 8140134C1, by also ordering connector, 1284305C1, nut, 9403528 and reducer, 9403400

2шт.

8

1270738C1

HYDRAULIC HOSE,0.38" ID x 25.00", SAE 100R1 A

Depth Control Corner to Hydraulic, Replaces 675846R91 0.38" ID x 25.00", SAE 100R1 A

2шт.

9

9402982

TEE,3/4"-16, 37 Degree

3/4-16 37 deg flared tube

2шт.

10

1285380C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 50 in. master hyd clinder RH, Replaces tube 813265C1 by also ordering connector, 1284305C1, nut, 9403528, and reducer, 9403400

2шт.

11

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE ASSY, 3/8 x 55 in. RH master hyd cylinder pressure, Replaces 813267C1, by also ordering two nuts, 9403528, and two reducers, 9403400

1шт.

12

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

short swivel union

8шт.

14

813006C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 85 in. hydraulic return jumper, Replaces 813266C1, by also ordering nut, 9403528 and reducer, 9403400

2шт.

15

306132C1

CABLE TIE,14.5" L

STRAP, hyd hose tie, Replaces 816502C1

16шт.

15

813579C1

CABLE TIE

STRAP, hyd hose tie, heavy

2шт.

16

149950C92

CYLINDER

ASSY, 4.25 x 8 in. double acting hydraulic, Depth control master, Replaces 149949C91, 810185C91 and 81356C91, Refer to cyl-1 for components

2шт.

1252009C2

SEAL KIT

o-ring and seal service

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, L

2шт.

124824

NUT,Hex, 5/16" - 18

5/16 jam type 5

2шт.

810751C1

PIN

1 x 3.5 std-hd-dld znd spcl

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

17

813077C1

HOSE ASSY.

HOSE ASSY, 3/8 x 55 in. master cylinder to slave cylinder hydraulic

2шт.

18

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg hyd flared tube short swivel

4шт.

19

1284301C1

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 45 in. slave cylinder hydraulic, Replaces tube, 154609C1, by also ordering two unions, 9402786

4шт.

20

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE ASSY, 3/8 x 55 in. slave cylinder hydraulic, For 25 foot

4шт.

20

195504C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 80 in. slave cylinder hydraulic, For 33 foot

4шт.

21

935036R91

ELBOW

slave cylinder 90 deg

4шт.

22

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, depth control wing slave, Replaces 149969C92 and 813528C91, Refer to cyl-1 for components

2шт.

22

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

22

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

80117C2

SEAL KIT

o-ring and seal service

1шт.

810751C1

PIN

1 x 3.5 std-hd-dld znd spcl

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

23

1284301C1

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 45 in. slave hydraulic cylinder extension, For 33 foot, Replaces tube 813427C1 by also ordering two unions, 9407786

4шт.

24

813537C1

HOSE ASSY.

HOSE ASSY, 3/8 x 65 in. LH master cylinder pressure

1шт.
