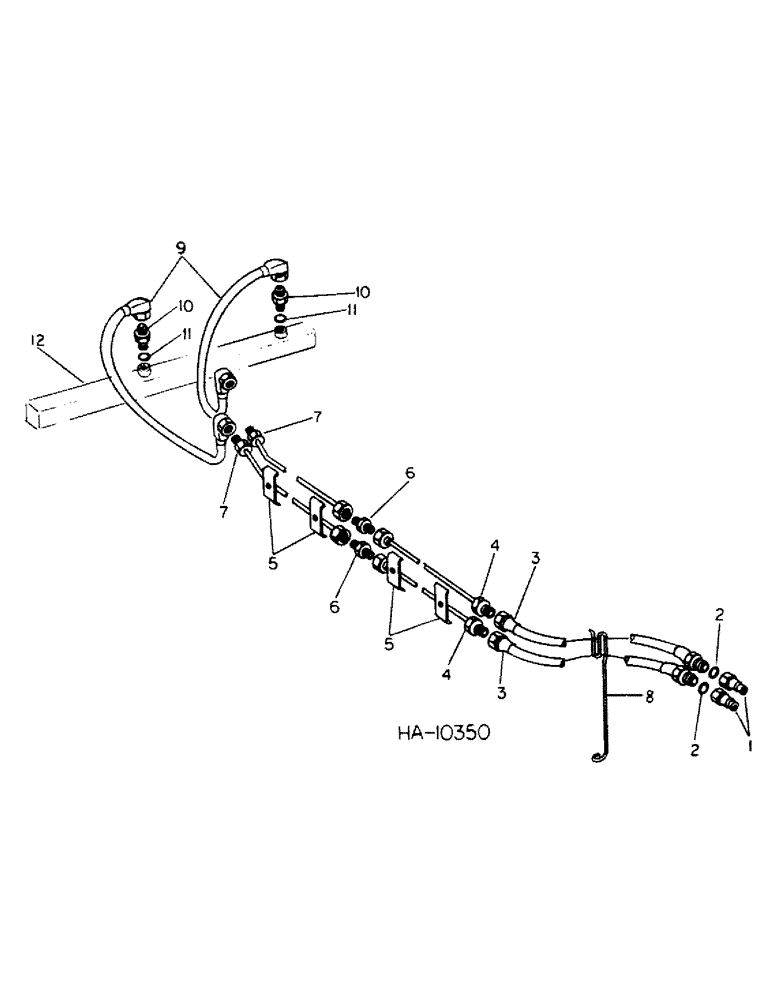

Запчасти Case IH 5500 (F-19) - WING LIFT HYDRAULIC SYSTEM, WING TYPE, MACHINES BUILT 1980 THROUGH 1985

1

COUPLER, hydraulic hose male, Refer to hydraulic couplers unit for details

1шт.

2

O-RING, hydraulic coupler, Refer to hydraulic couplers unit for details

1шт.

3

195504C2

HYDRAULIC HOSE

HOSE, 3/8 x 80 in. hydraulic front, Replaces 811270C1 by also ordering connector, 935433R1, nut, 9403528, and reducer, 9403400

2шт.

4

812381C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 115 in. wing lift hyd front, Replaces tube, 813041C1, by also ordering connector, 1284305C

2шт.

5

614323R2

CLAMP

hydraulic tube

8шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 37 deg flared hyd

2шт.

7

1285380C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 50 in. front extension hyd, Replaces tube 810140C1, by also ordering union, 9402786

2шт.

8

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

9

147878C1

HOSE

1/4 x 65 in. wing lift hydraulic cylinder

2шт.

10

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 hyd 37 deg flared tube short swivel

2шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

12

1282421C91

CYLINDER ASSY.

CYLINDER ASSY, 4-1/2 x 34 in. double acting wing hydraulic, Replaces 810070C91 and 85140C91, Refer to cyl-1 for components

1шт.

85124C1

SEAL KIT

o-ring and seal service

1шт.

810048C1

PIN

wing lift cylinder mounting

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

20885R1

WASHER

1.156 x 2.000 x .054

2шт.
