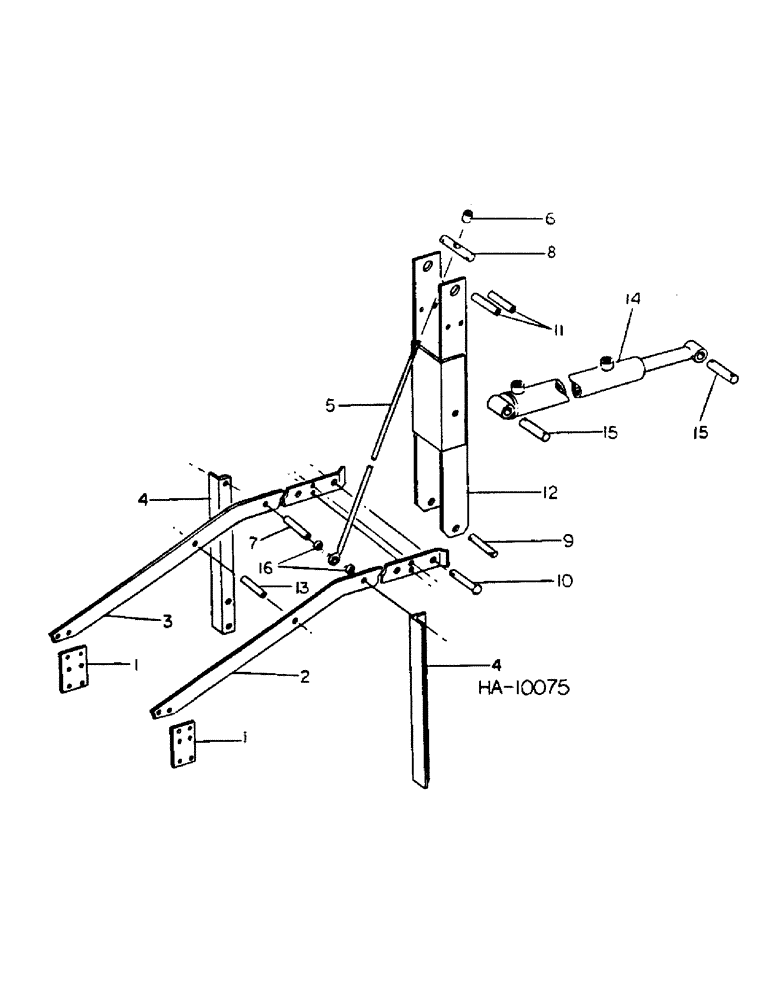

Запчасти Case IH 5500 (F-14) - WING LIFT UNIT, WING TYPE

1

813040C1

BAR

wing lift support

4шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

8шт.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1/2 x 6-1/2 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

2

810108C1

SUPPORT

wing frame lift front LH

1шт.

2

810109C1

SUPPORT

wing frame lift front RH

1шт.

3

810109C1

SUPPORT

wing frame lift rear RH

1шт.

810108C1

SUPPORT

wing frame lift rear LH

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 type 5

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

4

810157C1

ANGLE

lift support

4шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

5

810150C2

ROD

wing lift control

2шт.

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4 x 6-1/2 type 5

2шт.

426898

NUT,Jam, 7/8"-9, G5

3/4 type 5

2шт.

26070R1

WASHER,15/16" x 1 3/4" x .179", HDN

.938 x 1.750 x .179 hdn

2шт.

280954

NUT,3/4"-10, G5

2шт.

6

810154C1

SPACER

control rod

1шт.

7

810151C1

BUSHING

control rod

2шт.

8

810000C2

PIN

control rod

2шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

4шт.

609376R1

WASHER

1.781 x 2.500 x .105

4шт.

9

810001C1

PIN

control arm bar pivot

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

10

810002C1

PIN

wing lift transport

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

11

810172C1

SPACER

control arm

4шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2 x 7 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

12

810158C1

ARM

ASSY, wing lift control

2шт.

13

82798R1

SPACER,1/2" X-Strng Pipe x 4 3/16"

1/2 x 4.188 extra strong

2шт.

14

1282421C91

CYLINDER ASSY.

CYLINDER ASSY, 4-1/2 x 34 in. double acting hydraulic, Replaces 810070C91 and 85140C91, Refer to cyl-1 for components

1шт.

85124C1

SEAL KIT

o-ring and seal service

1шт.

15

810048C1

PIN

lift cylinder mounting

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

20885R1

WASHER

1.156 x 2.000 x .054

2шт.

16

162510C1

SPACER,1 3/8" Tube x 7/8"

1-1/8 x .875 tubing

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
