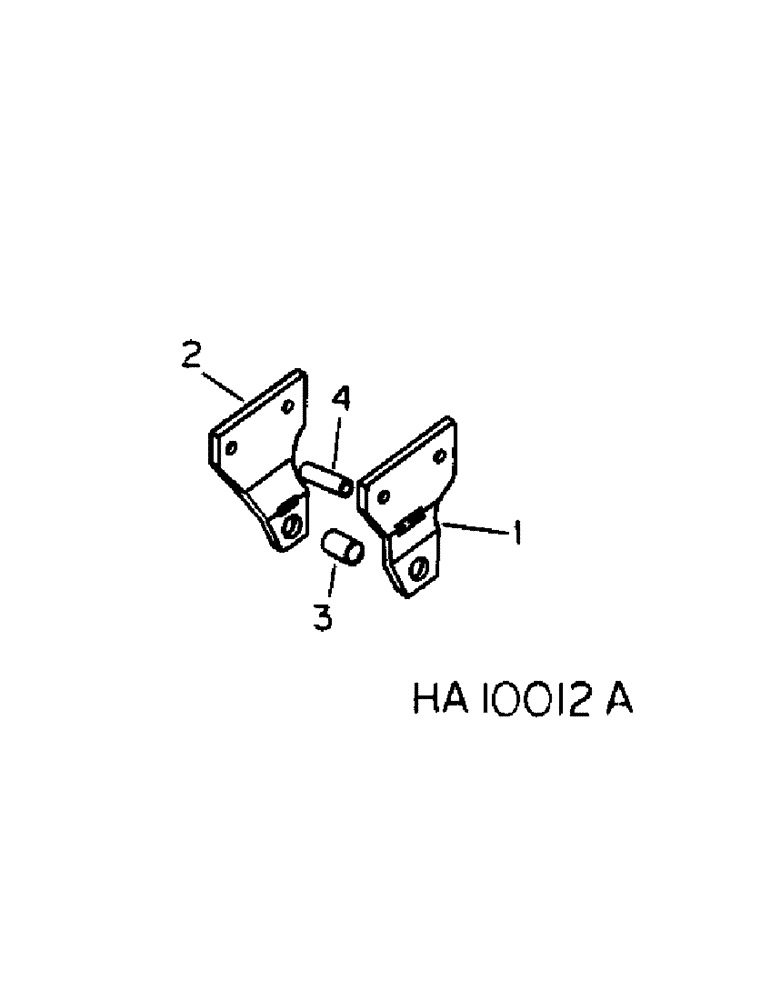

Запчасти Case IH 5500 (B-03[A]) - QUICK COUPLER HITCH ADAPTOR, TWO RANK MODELS

1

597796R1

PLATE

adapting LH

1шт.

2

597797R1

PLATE

adapting RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

3

597801R1

SPACER

BUSHING, adapting plate

1шт.

271865

SEAL KIT,Hex, 1" - 8 x 4 1/2", Gr 5

1 x 4-1/2 type 5

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

4

PO27260

SPACER,1" Pipe x 2"

1ID x 2 connecting bar

1шт.

17294R1

BOLT,Hex, 1" - 8 x 6", Gr 5

1 x 6 type 5

1шт.

9849633

NUT,1"-8, G5

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.
