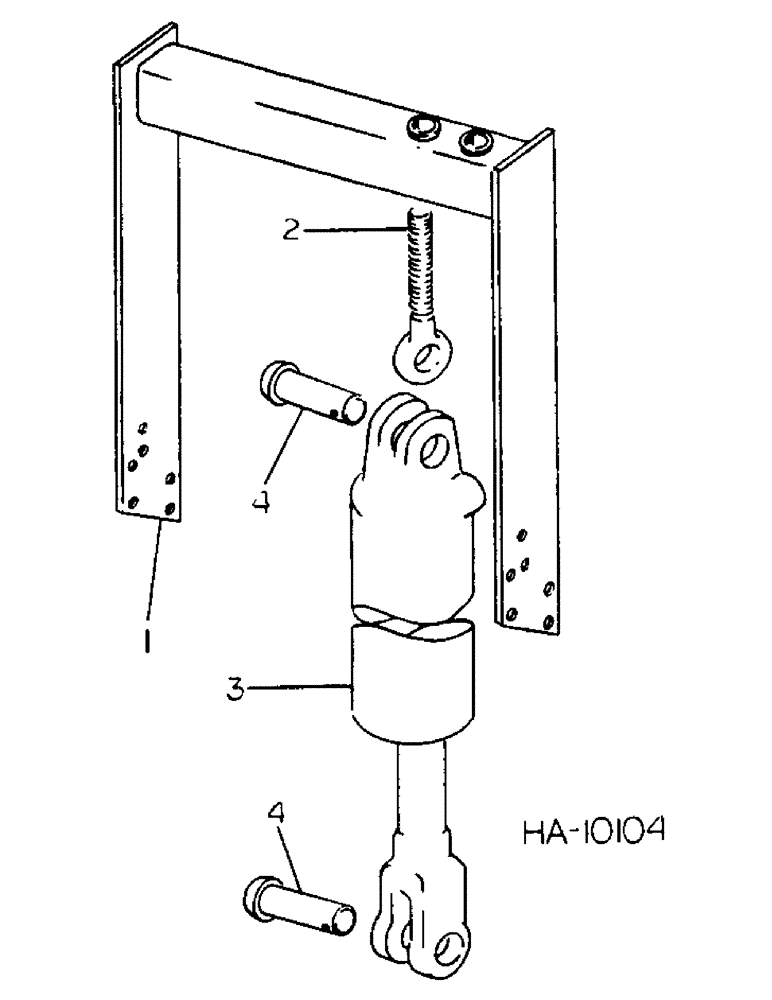

Запчасти Case IH 5500 (F-12) - WING FRAME DEPTH CONTROL, WING TYPE

1

810116C1

SUPPORT

ASSY, wing wheel cyl LH

1шт.

1

810117C1

SUPPORT

ASSY, wing wheel cyl RH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

2

813200C1

BOLT,7/8" - 9 x 7.50"

BOLY, wing cylinder eye

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, depth control wing slave, Replaces 149969C92 and 813528C91, Refer to cyl-1 for components

2шт.

3

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

2шт.

3

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

80117C2

SEAL KIT

o-ring and seal service

1шт.

4

810751C1

PIN

1/4 x 1-1/2 pln cot

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.
