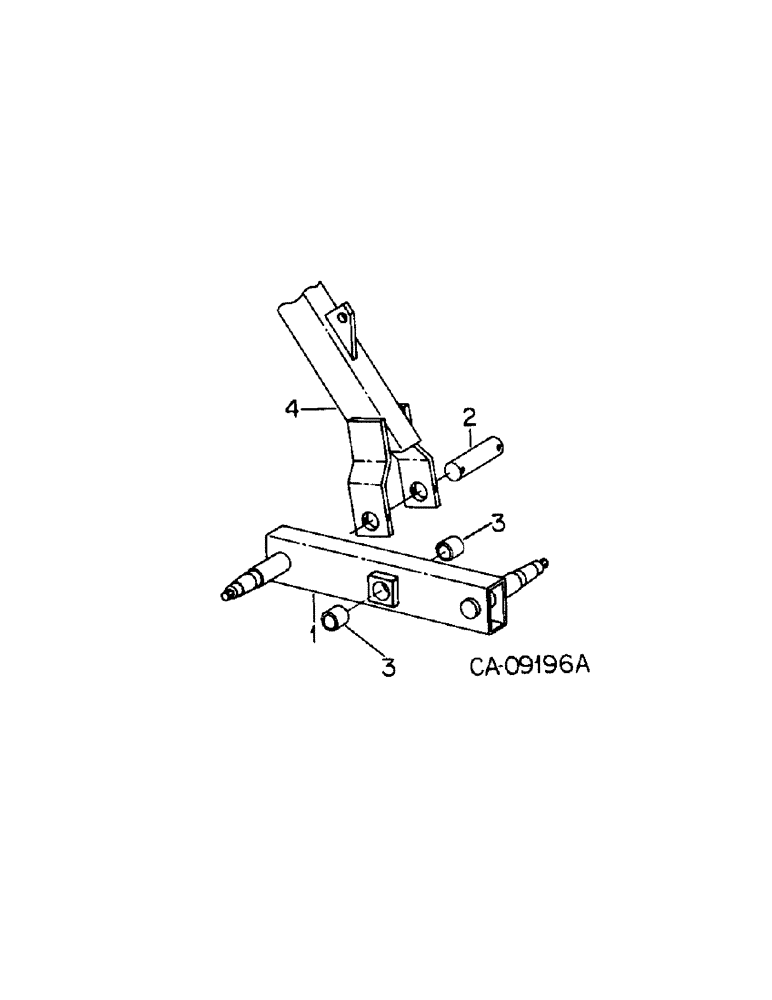

Запчасти Case IH 5500 (F-11) - MAIN FRAME AXLE, WING TYPE, MACHINES WITH AXLE PIVOT THROUGH AXLE TUBE

1

1284064C92

TUBE NUT

TUBE ASSY, bogie wheel axle, Includes two bushings, 89230C1, two nuts, 70120D, two pins, 103388, and two washers, 6193736R1

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

2

1279363C2

PIN,50.8mm OD x 165mm L

pivot

2шт.

24486R1

BOLT, 3/8 x 4-1/2 phc type 8

4шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

4шт.

3

89230C1

BUSHING,51.18mm ID x 63.15mm OD x 40mm L

pivot

4шт.

4

ROCKSHAFT ASSY, depth control, For components refer to depth control rockshaft

1шт.

1337614C1

PACKAGE

bogie axle pivot service, Consists of

1шт.

1337962C1

SUPPORT

ASSY, bogie axle pivot, Includes two bushings, 89230C1

2шт.

1279363C2

PIN,50.8mm OD x 165mm L

bogie axle pivot

1шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS, installing

1шт.
