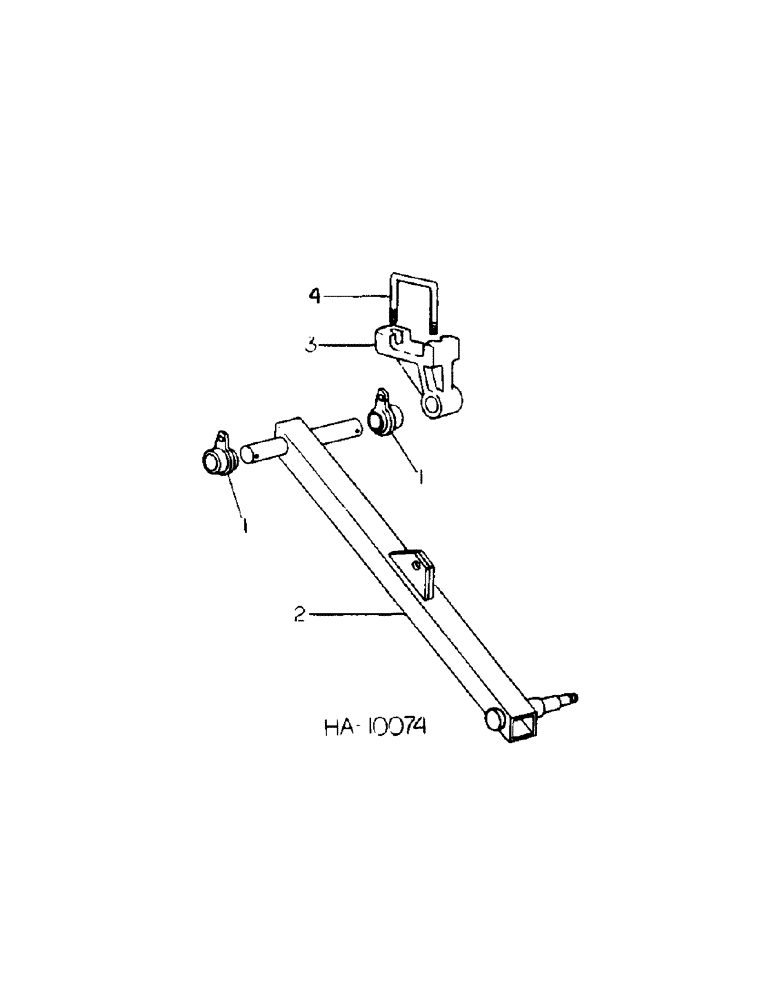

Запчасти Case IH 5500 (F-11[A]) - WING FRAME AXLE

1

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING, axle pivot support

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

810088C91

AXLE

ASSY, wing frame, 25 inch regular clearance

2шт.

811643C91

HUB ASSY.

AXLE ASSY, wing frame, 32 inch high clearance, Includes 1-619373R1, washer, 1-70120D, nut and 1-103388, cotter pin

2шт.

108660

PIN,5/16" x 3"

Split (Cotter), 5/16" x 3"

4шт.

609376R1

WASHER

1.781 x 2.500 x .105 (Or as required)

8шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex, jam

2шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

3

NOT USED THIS APPLICATION

1шт.

4

NOT USED THIS APPLICATION

1шт.
