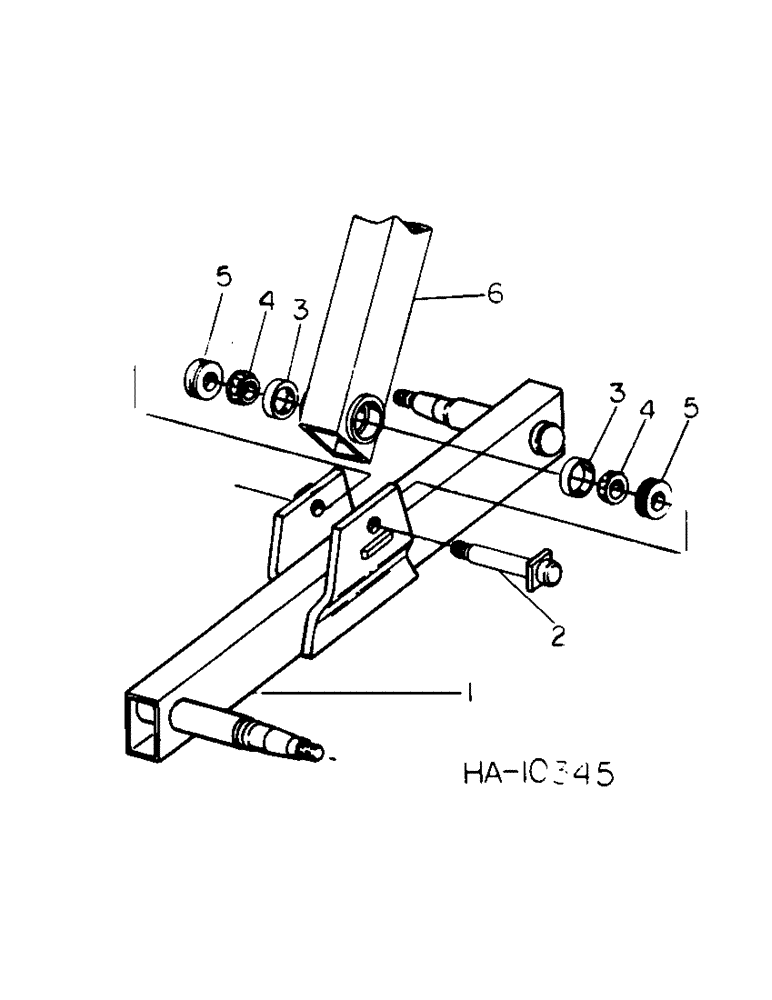

Запчасти Case IH 5500 (F-10) - MAIN FRAME AXLE, WING TYPE, MACHINES WITH AXLE PIVOT THROUGH ROCKSHAFT TUBE

1

AXLE ASSY, main frame LH, Order package, 1284360C92

1шт.

1

AXLE ASSY, main frame RH, Order package, 1284360C92

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

4шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

4шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

4шт.

2

813121C1

STUD

STUD ASSY, axle pivot

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

3

651817R1

BEARING CUP

CUP, axle pivot bearing

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing

4шт.

5

813159C2

SEAL

ASSY, axle pivot

4шт.

6

ROCKSHAFT ASSY, depth control, For components refer to depth control rockshaft

1шт.

1284360C92

KIT

PACKAGE, bogie wheel axle, replaces axles 811396C91 and 811397C91, Consists of

1шт.

1284064C92

TUBE NUT

TUBE ASSY, bogie wheel axle plate, rockshaft pivot (NSS)

2шт.

1279363C2

PIN,50.8mm OD x 165mm L

pivot

1шт.

24846R1

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 8

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 phc p/t lock type 8, instructions, installing (NSS)

2шт.
