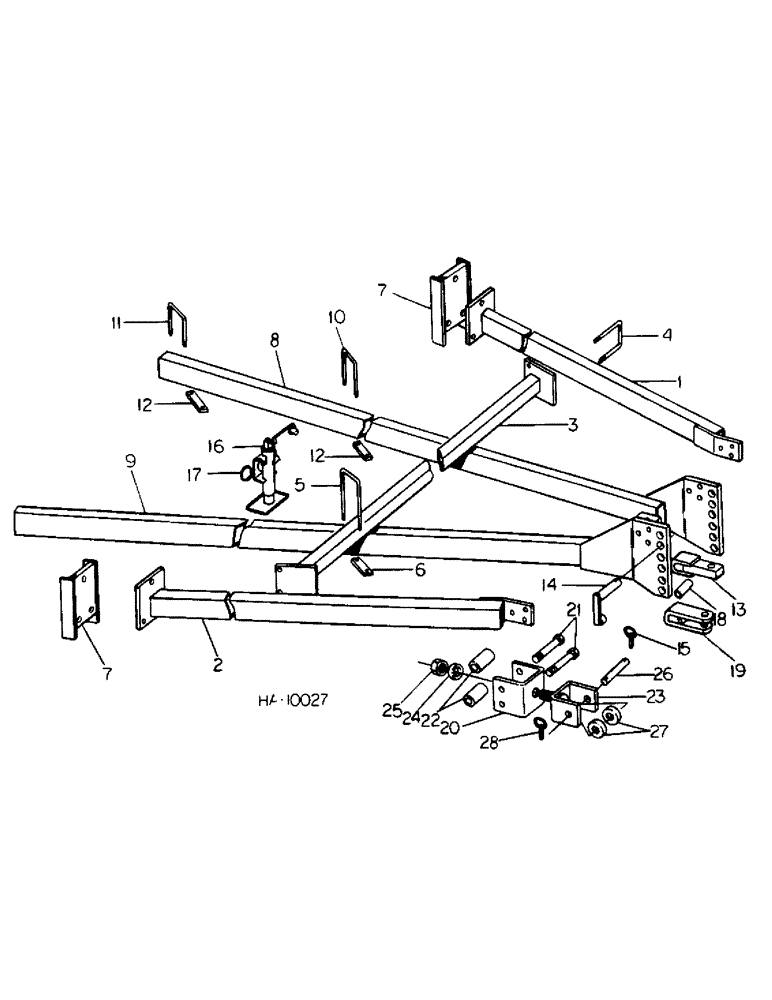

Запчасти Case IH 5500 (F-05) - TRACTOR AND SWIVEL HITCH, WING TYPE, MACHINES BUILT 1980 THROUOGH 1983
№
Артикул
Название
Примечание
Количество
1
810042C1
BRACE
ASSY, hitch LH
1шт.
2
810043C1
BRACE
ASSY, hitch RH
1шт.
3
810130C1
BRACE
ASSY, hitch cross
1шт.
4
811627C1
BOLT
U-BOLT, cross brace
2шт.
5
810141C1
BOLT,U, 5/8" - 11 x 10"
U-BOLT, cross brace
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
8шт.
6
812662C1
BAR
u-bolt mounting
2шт.
7
810145C1
SUPPORT
ASSY, hitch brace rear
2шт.
20166R1
BOLT,Hex, 5/8" - 11 x 6", Gr 5
5/8 x 6 type 5
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
8
810035C1
BEAM ASSY, hitch LH
1шт.
9
810036C1
BEAM
ASSY, hitch RH
1шт.
19866R1
BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5
3/4 x 6-1/2 type 5
3шт.
10
810050C1
BOLT,U, 5/8" - 11 x 13.50
U-BOLT, hitch beam front
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
11
812864C1
U-BOLT,5/8" - 11 x 11.6"
hitch beam rear
6шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
12шт.
12
812865C1
BAR
u-bolt clamping
8шт.
13
605866R91
TOW BAR
CLEVIS ASSY, heavy duty hitch
1шт.
14
810066C2
PIN
ASSY, hitch clevis
1шт.
15
D33805
PIN
hitch klik, Replaces 621006C1
1шт.
21718R1
WASHER
1.531 x 2.250 x .105
1шт.
16
810152C91
JACK
ASSY, tractor hitch, For comps refer to hitch jack
1шт.
17
24592R1
SNAP RING,#250, Ext
Ring, Snap, , jack #250, Ext
1шт.
18
597326R1
SPACER
BUSHING, hitch clevis, Prior to Jan. 1981
1шт.
19
1279227C1
TRAILER HITCH
CLEVIS ASSY, H.D. hitch, Replaces 597324R1
1шт.
20
810049C1
CHANNEL, hitch plate pivot
1шт.
21
23675R1
BOLT,Hex, 1"-8 x 7 1/2", G5
1 x 7-1/2 type 5
2шт.
9849633
NUT,1"-8, G5
2шт.
22
651028R1
SPACER, hitch
2шт.
23
810082C2
PIVOT ASSY, hitch swivel
1шт.
24
619936R1
WASHER
pivot bolt
1шт.
25
810092C1
NUT
2-4.5 hex
1шт.
26
810086C1
PIN
hitch clevis pivot
1шт.
119203
PIN,3/8" x 3"
Split (Cotter), 3/8" x 3"
1шт.
27
810085C1
BUSHING
swivel pivot
2шт.
28
D33805
PIN
hitch klik, Replaces 621006C1
1шт.
Выбрано товаров: 42
