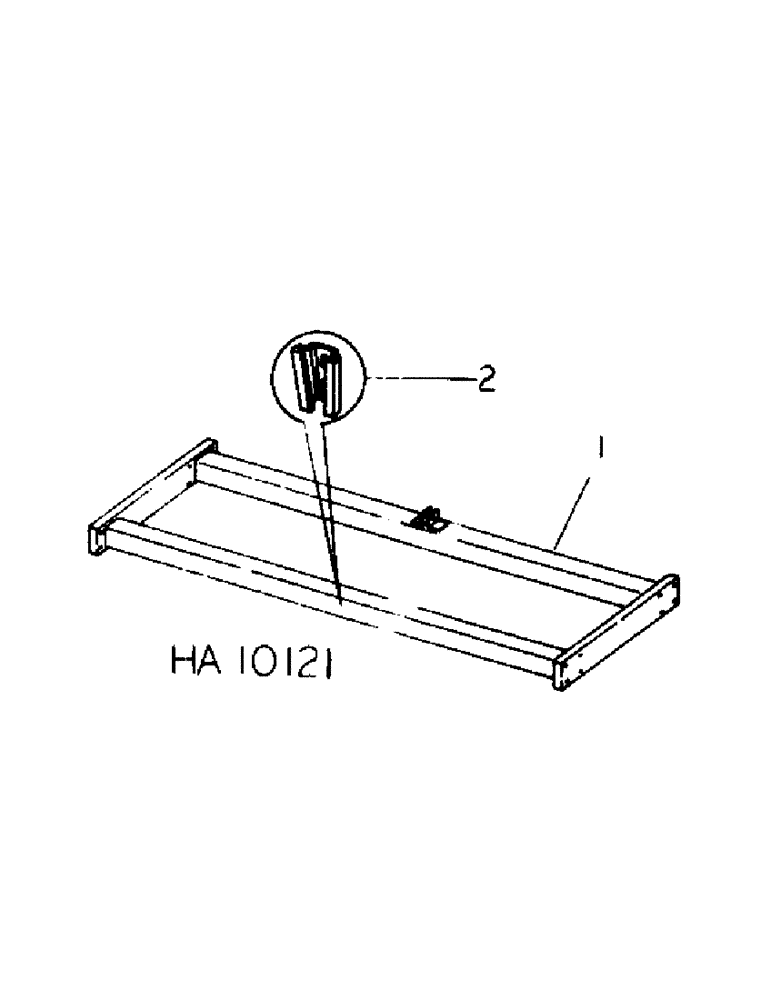

Запчасти Case IH 5500 (B-02) - MAIN FRAME, DIRECT MOUNTED, TWO RANK MODELS

1

811427C92

FUNNEL

FRAME ASSY, main - 7 foot model

1шт.

1

811428C92

FUNNEL

FRAME ASSY, main - 11 foot model, Includes the following

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general caution

1шт.

1284365C1

REFLECTOR,Reflector Amber

amber

1шт.

1284374C1

REFLECTOR,Reflector Red

red

2шт.

2

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
