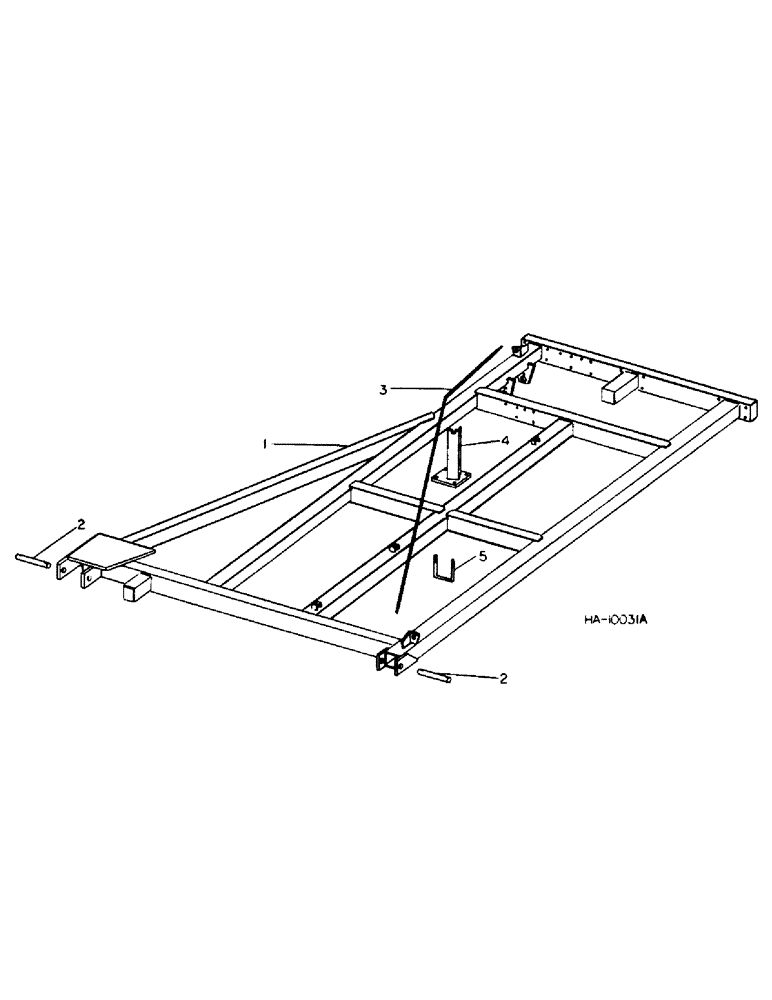

Запчасти Case IH 5500 (F-04) - WING FRAME, WING TYPE, 33 FOOT MODEL

1

810010C1

FRAME

ASSY, 33 foot LH wing

1шт.

1

810011C1

FRAME

ASSY, 33 foot RH wing

1шт.

2

810945C1

PIN

ASSY, hinge

4шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

8шт.

3

810072C1

ROD

wing frame truss

2шт.

280954

NUT,3/4"-10, G5

8шт.

4

811153C1

SUPPORT

ASSY, truss rod LH

1шт.

4

811154C1

SUPPORT

ASSY, truss rod RH

1шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

truss rod support

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.
