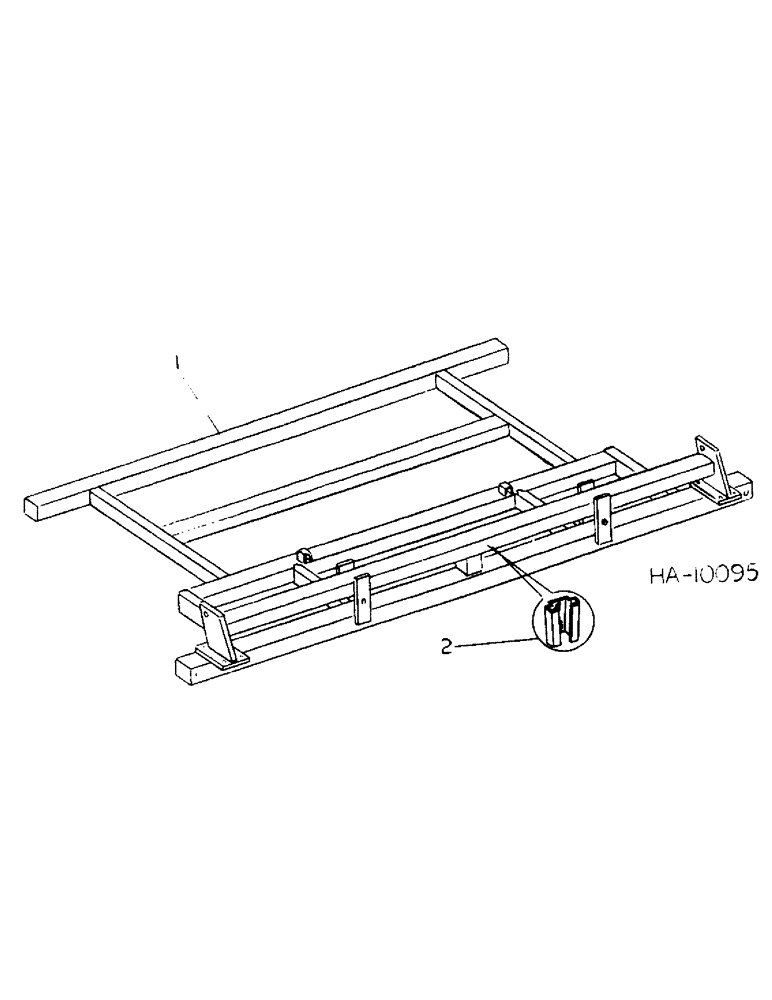

Запчасти Case IH 5500 (F-02) - MAIN FRAME, WING TYPE

1

812545C95

FUNNEL

FRAME ASSY, main, Includes the following

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general caution

1шт.

810170C2

PRODUCT GRAPHIC

warning wing frame

2шт.

1284365C1

REFLECTOR,Reflector Amber

amber

1шт.

1284374C1

REFLECTOR,Reflector Red

red

2шт.

2

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19628R91

NIPPLE, LUBE

FITTING, 1/8 pipe thd 45D lub, main frame

4шт.
