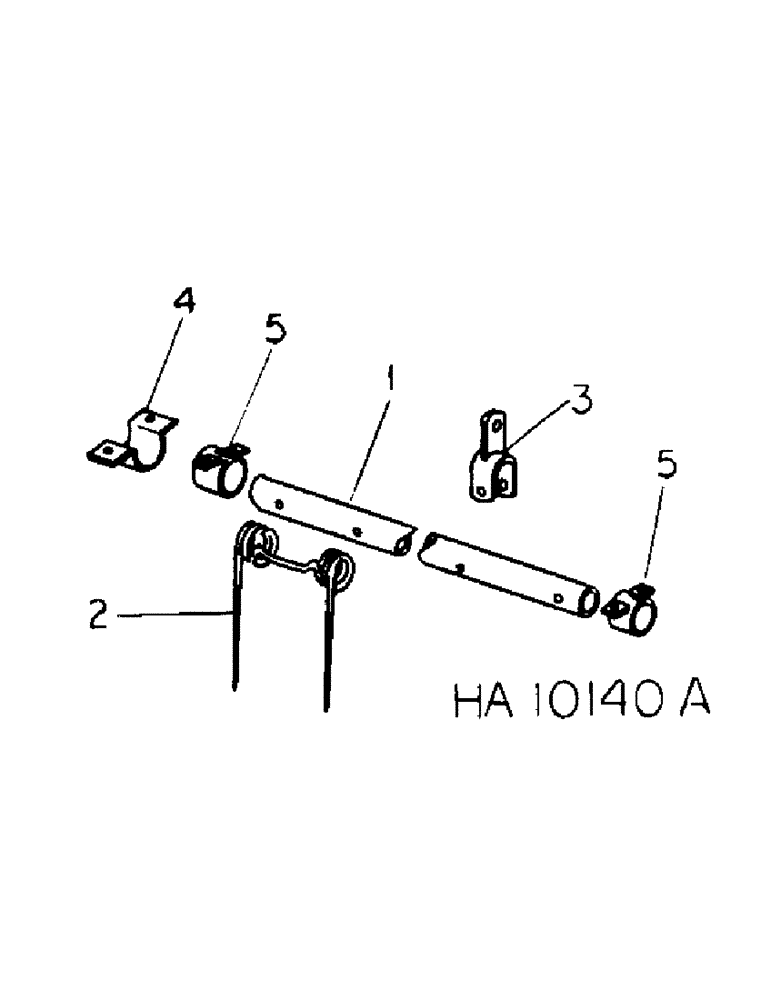

Запчасти Case IH 5500 (E-06) - MULCHER CENTER BAR, MULCHERS

1

485604R1

TUBE

centre tooth bar, For use w/4 ft. 9 in. mulcher

1шт.

1

485605R1

TUBE

centre tooth bar, For use w/6 ft. mulcher

1шт.

1

490552R1

TUBE

centre tooth bar, For use w/7 ft. 3 in. mulcher

1шт.

1

813030C1

TUBE,1.66" OD, 113.875" Length

centre tooth bar, For use w/9 ft. 9 in. mulcher

1шт.

1

813031C1

TUBE, centre tooth bar, For use w/12 ft. 3 in. mulcher 1.66" OD, 143.875" Length

1шт.

1

813032C1

TUBE,1.66" OD, 173.875" Length

centre tooth bar, For use w/14 ft. 9 in. mulcher

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

3шт.

2

72901C1

TOOTH

spring, 4 used w/4 ft. 9 in. bar, 5 used w/6 ft bar, 6 used w/7 ft. 3 in. bar, 8 used w/9 ft. 9 in. bar, 10 used w/12 ft. 3 in. bar, 12 used w/14 ft. 9 in. bar

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

tooth shoulder, 2 bolts used per tooth

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock, 1 nut used per bolt

1шт.

3

485601R1

ARM

POST, centre tooth bar, 1 used w/4 ft. 9 in., 6ft., 7ft. 3in., 9 ft. 9 in bars, 2 used w/12 ft. 3 in. 14 ft. 9 in. bars

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1.500 pln hd type 1, 1 per post

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

1 per post 5/32" x 1"

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

PIN, 7/16 x 2-3/4 type 5, 1 per post

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock, 1 per post

1шт.

4

813036C1

CLAMP

tooth bar tube, Used w/9 ft. 9 in., 12 ft. 3 in., 14 ft. 9 in. bars

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

485603R1

BUSHING

ASSY, centre bar, Used w/4 ft. 9 in., 6 ft., 7 ft. 3 in. bars

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
