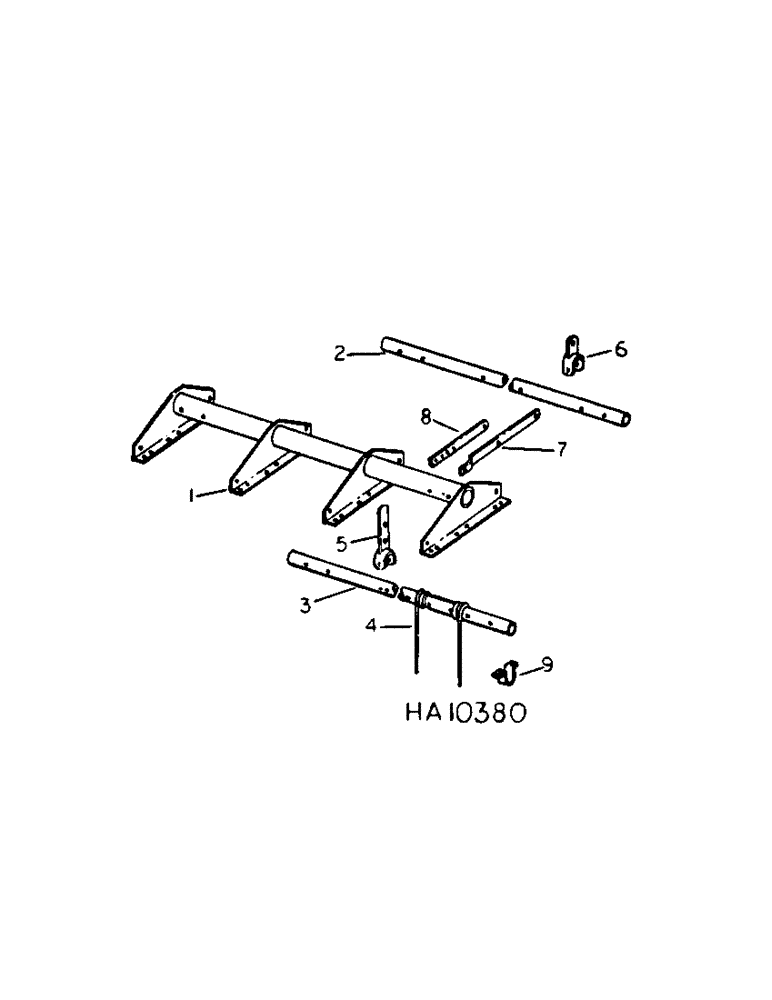

Запчасти Case IH 5500 (E-04) - 9 FOOT, 9 INCH MULCHER, MULCHER, TWO BAR

1

813020C1

FRAME, 9 foot 9 inch mulcher

1шт.

2

813027C1

TUBE,1.66" OD, 113.875" Length

front tooth bar

1шт.

3

813033C1

TUBE,1.66" OD, 113.875" Length

rear tooth bar

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

4шт.

4

72901C1

TOOTH

spring

16шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

tooth shoulder

32шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

32шт.

5

485592R1

ARM

HANDLE, frame

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

7/16 x 2-3/4 type 5

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

6

485601R1

ARM

POST, front tooth bar

1шт.

NLS

NO LONGER SERVICED

7/16 x 2-3/4 type 5

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex lock

1шт.

7

485593R1

SUPPORT

BRACE, handle reach

1шт.

8

485594R1

BAR

adjusting reach

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 hd type 1

4шт.

21331R1

WASHER

.469 x 1.250 x .054

3шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

813036C1

CLAMP

tooth bar tube

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.
