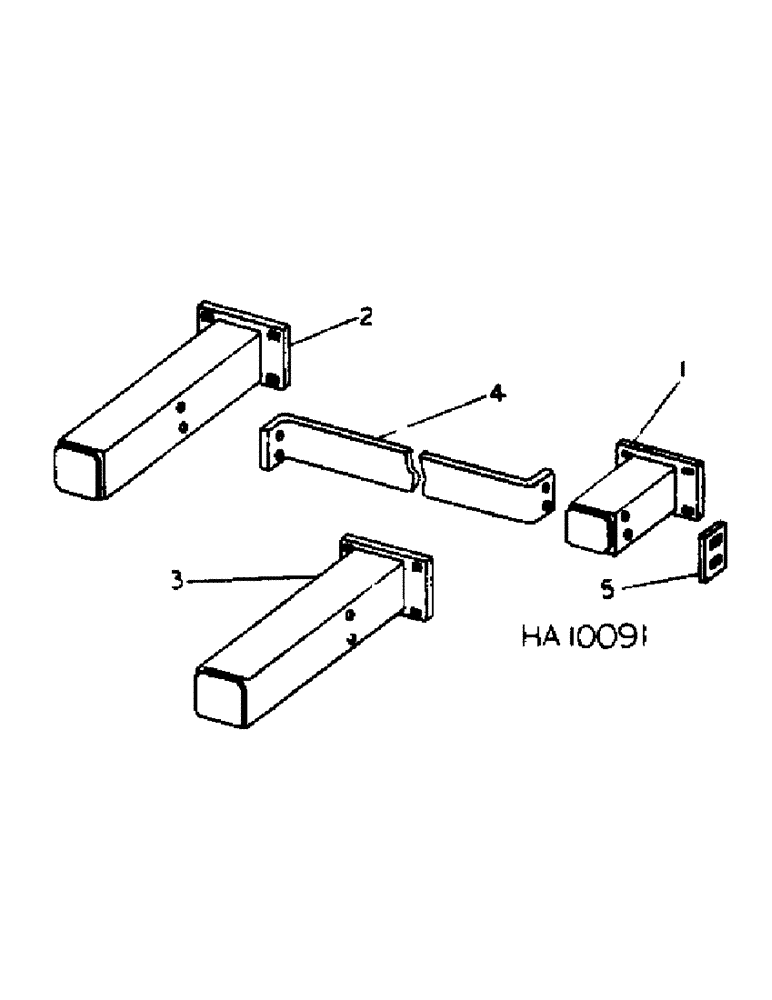

Запчасти Case IH 5500 (B-02[A]) - FRAME EXTENSIONS, TWO RANK MODELS

1

608331R91

EXTENSION

ASSY, frame short

2шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

2

608332R92

EXTENSION

ASSY, frame long, Use w/608331R91 extension

2шт.

These extensions have four holes instead of two as illustrated. 08/19/96

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

3

608473R91

EXTENSION

ASSY, frame long, For use on 7 foot 2 rank machine when slide adjusting type gauge wheel is mounted on outside of frame

2шт.

These extensions have four holes instead of two as illustrated. 08/19/96

1шт.

608812R1

CARRIAGE BOLT,5/8" - 11 x 3 1/4", Grade 5

BOLT, 5/8 x 3-1/4 crg type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

4

608338R1

STRAP

extension connecting, Use w/608332R92 extension

2шт.

18728R1

BOLT, 5/8 x 6 crg type 1 Short NK, 5/8"-11 x 6", G2

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

608339R1

BLOCK

BAR, extension clamping, Use w/608332R92, extension

4шт.
