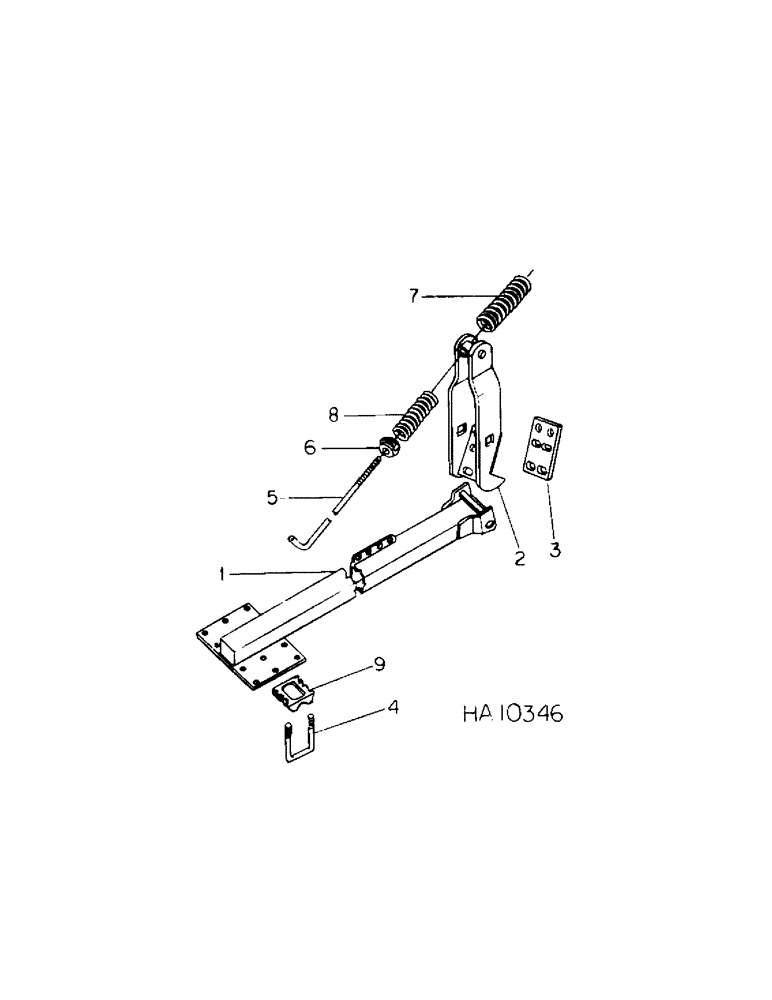

Запчасти Case IH 5500 (E-02) - MULCHER CARRIER ARM, MULCHER

1

812223C1

ARM

ASSY, carrier

1шт.

2

812224C1

BRACKET

ASSY, attaching

1шт.

18741R1

BOLT

3/4 x 6 crg type 1

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 two way hex lock

1шт.

3

812225C1

BAR

bracket mounting clamp

1шт.

461723R1

BOLT,5/8" - 11 x 6", Grade 5

5/8-11 x 6 hex-hd-spcl

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT, carrier arm

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

5

596580R1

ROD

compression

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21753R1

WASHER

.781 x 1.500 x .203 pln

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

2шт.

6

1431BX

COLLAR CLAMP

COLLAR ASSY, rod, Includes 1-100448 screw

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW. 1/2 x 3/4 pln c/pt sq/hd set

1шт.

7

485611R1

SPRING

compression upper

1шт.

8

596574R1

SPRING

compression lower

1шт.

9

490687R1

CLAMP

casting

2шт.
