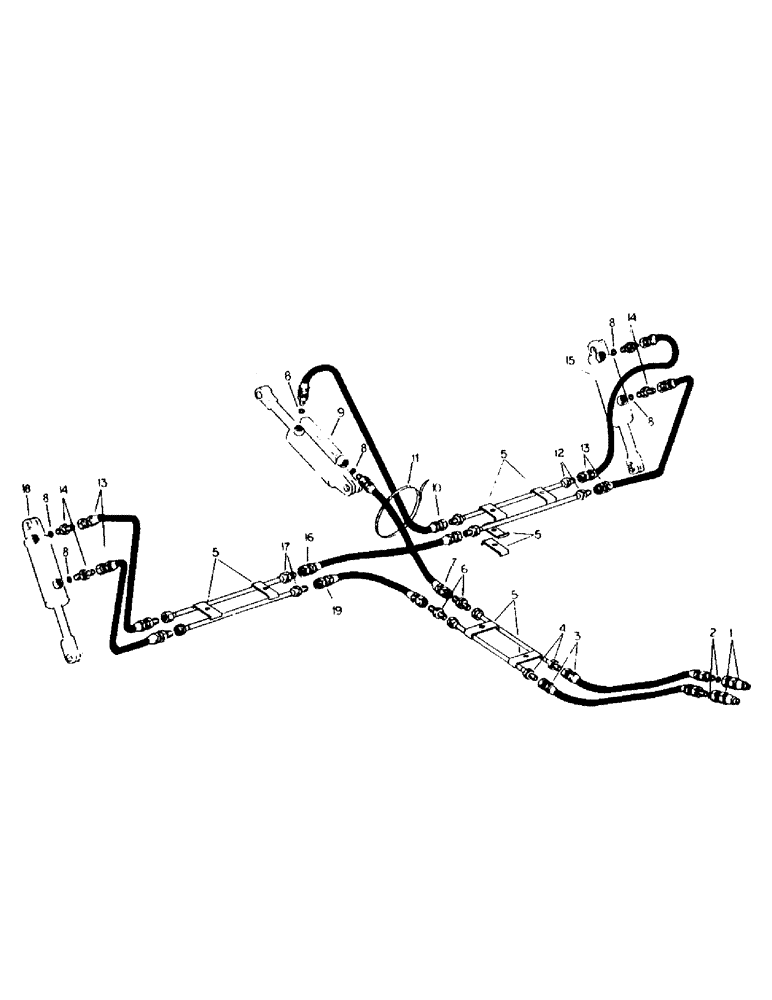

Запчасти Case IH 5500 (D-11) - DEPTH CONTROL HYDRAULIC SYSTEM, SINGLE WING, MACHINES BUILT 1980 THROUGH 1985

1

COUPLER, male hose, Refer to hydraulic couplers unit for details

1шт.

2

O-RING, male hose coupler, Refer to hydraulic couplers unit for details

1шт.

3

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- Front, Replaces 599679R1 by also ordering connector, 481352R1 12.70 mm ID x 1650.00 mm

2шт.

4

1254574C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 60 in. hydraulic front, Replaces tube, 813607C1 by also ordering connector, 1284305C1, nut, 9403528 and reducer, 9403400

2шт.

5

614323R2

CLAMP

hydraulic tube

6шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

3шт.

180085

SPRING

5/16 x 1-3/4 type 5

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

.344 x 1.000 x .105

2шт.

6

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared

2шт.

7

393704R92

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 31 in. master cylinder pressure, Replaces 813608C1 by also ordering connector, 587639R1, nut, 9403258 and reducer, 9403400

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

master cylinder pressure hose

6шт.

9

149950C92

CYLINDER

ASSY, 4.25 x 8 in. double acting hydraulic, depth control master, Replaces 813526C91, Refer to cyl-1 for components

1шт.

1252009C2

SEAL KIT

o-ring and seal service

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, L

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

810751C1

PIN

1 x 3-1/2 std-hd-dld spcl

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

10

1284301C1

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 45 in. slave cylinder pressure LH, Replaces 813611C1 by also ordering connector, 587639R1, nut, 9403258 and reducer, 9403400

1шт.

11

306132C1

CABLE TIE,14.5" L

STRAP, hose tie, Replaces 816502C1

1шт.

12

1254574C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 60 in. hyd slave cylinder LH, Replaces tube, 813530C1 by also ordering connector, 481352R1

2шт.

13

185853C1

HOSE

3/8 x 33 in. slave cyl hyd LH, Replaces 813609C1

4шт.

14

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd 37 deg flared tube short swivel

4шт.

15

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, depth control main slave, Replaces 813527C91, Refer to cyl-1 for components

1шт.

15

87423777R

REMAN-HYD CYLINDER

Reman for New PN 1272485C92

1шт.

15

87423777C

CORE-HYD CYLINDER

Return Number

1шт.

80117C2

SEAL KIT

o-ring and seal service

1шт.

810751C1

PIN

1 x 3-1/2 std-hd-dld spcl

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

16

813610C1

HOSE

3/8 x 50 in. slave cyl

1шт.

17

1285380C2

HYDRAULIC HOSE

HOSE ASSY, 3/8 x 50 in. hydraulic slave cylinder RH, Replaces tube, 813529C1 by also ordering connector, 481352R1

2шт.

18

1282328C92

CYLINDER ASSY.

CYLINDER ASSY, 3.75 x 8 in. double acting hydraulic, depth control wing slave, Replaces 149969C92 and 813528C91, Refer to cyl-1 for components

1шт.

18

87423766R

REMAN-HYD CYLINDER

3.75" x 8"

1шт.

18

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

80115C2

SEAL KIT

KIT, o-ring and seal service

1шт.

810751C1

PIN

1 x 3-1/2 std-hd-dld spcl

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

19

813610C1

HOSE

3/8 x 50 in. slave cylinder return hydraulic

1шт.
