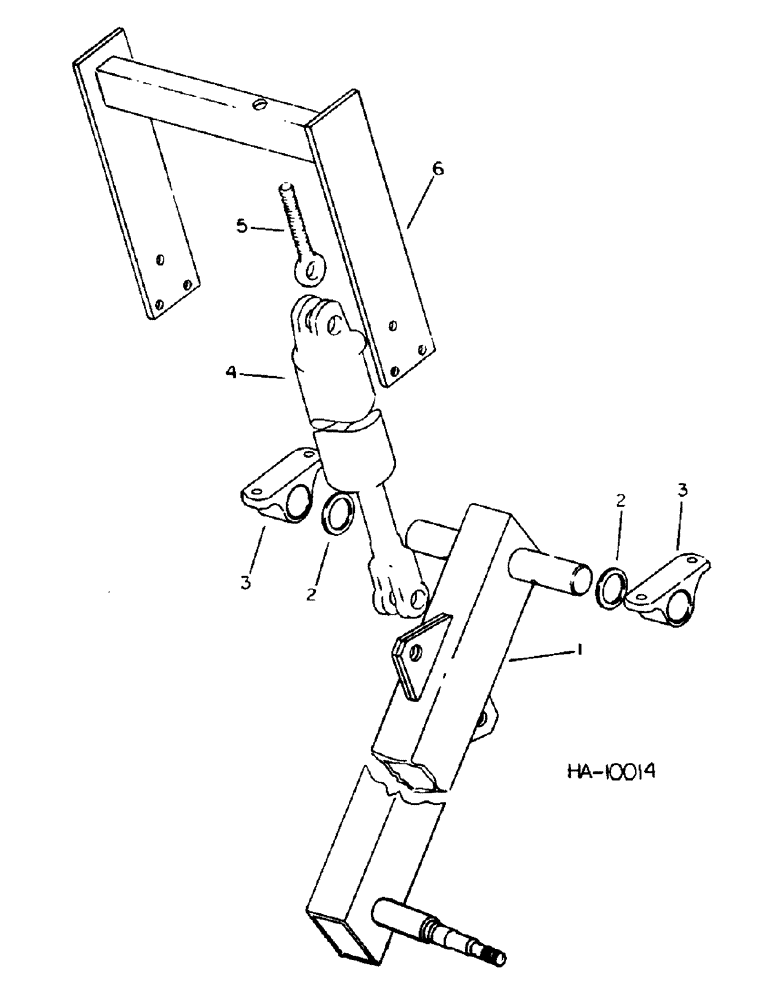

Запчасти Case IH 5500 (D-07) - OUTER AXLE AND DEPTH CONTROL CYLINDER, SINGLE WING

1

811061C91

AXLE

ASSY, outer, Includes 1-369857R1, washer, 1-427640 nut & 1-137204, pin

1шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

special

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF slt type 5

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

2

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

3

597346R1

BEARING CARRIER

axle support

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8 x 1-3/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

1272485C92

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. double acting hydraulic, depth control main slave, Replaces 813527C91, Refer to cyl-1 for components

1шт.

Ref #4 - 1272485C92, won't work on the single wing, use 1337459C1 08/19/96

1шт.

80117C2

SEAL KIT

o-ring and seal service

1шт.

4

1282328C92

CYLINDER ASSY.

CYLINDER ASSY, 3.75 x 8 in, double acting hydraulic, depth control wing slave, Replaces 149969C92 and 813528C91, Refer to cyl-1 for components

1шт.

4

87423766R

REMAN-HYD CYLINDER

CYLINDER ASSY, 3.75 x 8 in, double acting

1шт.

4

87423766C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

80115C2

SEAL KIT

KIT, o-ring and seal service

1шт.

810751C1

PIN

1 x 3-1/2 in. std-hd-dld special

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

5

813200C1

BOLT,7/8" - 9 x 7.50"

slave cylinder eye

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

21715R1

WASHER

.906 x 1.750 x .105

4шт.

6

813605C2

SUPPORT

ASSY, slave cylinder LH, mach w/25 in. regular clearance shank

1шт.

6

813606C2

SUPPORT

ASSY, slave cylinder RH, shown, mach w/25 in. regular clearance shank

1шт.

6

813556C1

SUPPORT

ASSY, slave cylinder LH, mach w/32 in. high clearance shank

1шт.

6

813557C1

SUPPORT

ASSY, slave cylinder RH, shown, mach w/32 in. high clearance shank

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.
