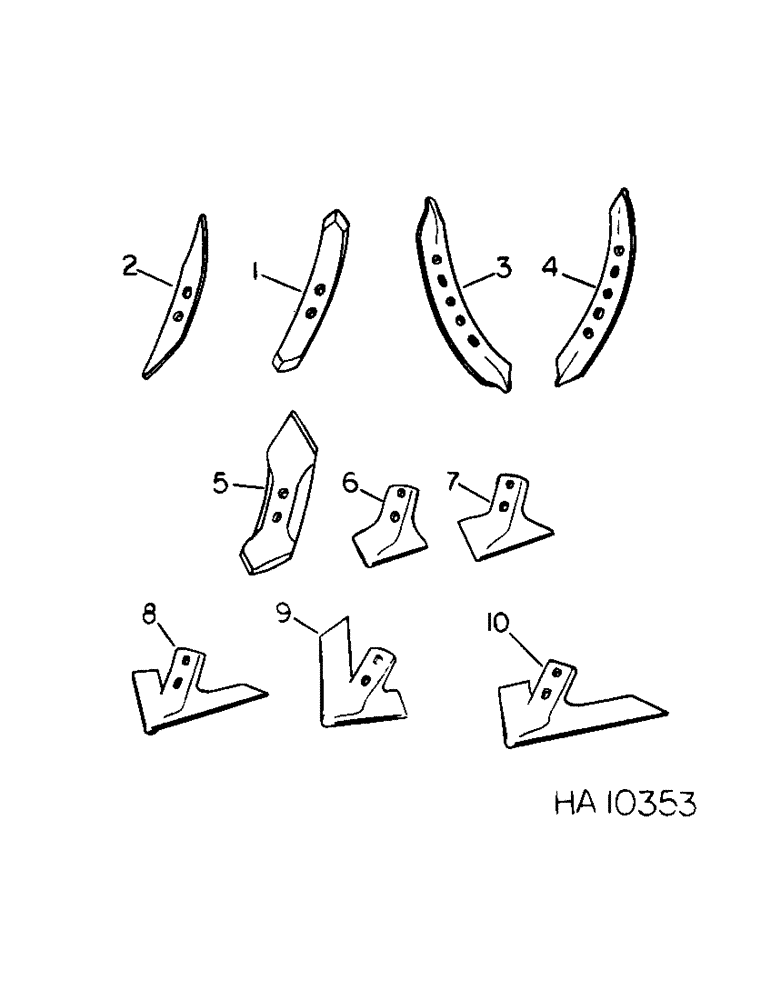

Запчасти Case IH 5500 (A-05) - GROUND WORKING TOOLS AND SHANKS, GROUND WORKING TOOLS

1

601986R1

POINT

2 inch reversible chisel

1шт.

2

602594R1

POINT

2 inch reversible spike

1шт.

3

594545R1

SHOVEL

3 inch twisted LH, Use w/594546R1 shovel

1шт.

4

594546R1

SHOVEL

3 inch twisted RH, Use w/594545R1 shovel

1шт.

5

602595R1

TIP

SHOVEL, 4-1/2 inch reversible

1шт.

6

602276R2

SWEEP

8 inch, 1/4 inch material, For use on IH machines

1шт.

6

810192C2

SWEEP

8 in., 1/4 in. material, For use on competition machines

1шт.

7

602596R2

TIP

SWEEP, 10 inch, 1/4 inch material, For use on IH machines

1шт.

7

810193C2

SWEEP

10 in., 1/4 in. material, For use on competition machines

1шт.

8

603054R3

TIP

SWEEP, 12 inch, 1/4 inch material, For use on IH machines

1шт.

8

810194C2

SHOVEL

SWEEP, 12 in., 1/4 in. material, For use on competition machines

1шт.

8

602257R3

TOOTH

SWEEP, 12 inch, 5/16 inch material

1шт.

8

596624R1

SHOVEL

SWEEP, 13-1/2 inch, 1/4 inch material high lift

1шт.

8

603055R3

TIP

SWEEP, 14 inch, 1/4 inch material, For use on IH machines

1шт.

8

810195C2

SHOVEL

SWEEP, 14 in., 1/4 in. material, For use on competition machines

1шт.

8

601988R3

SWEEP

14 inch, 5/16 inch material high lift

1шт.

8

596625R1

SHOVEL

SWEEP, 15-1/2 inch, 1/4 inch material high lift

1шт.

8

602592R3

TIP

SWEEP, 16 inch, 1/4 inch material, For use on IH machines

1шт.

8

810196C2

SWEEP

16 in., 1/4 in. material, For use on competition machine

1шт.

8

602207R3

TOOTH

SWEEP, 16 inch, 5/16 inch material

1шт.

8

596626R1

SHOVEL

SWEEP, 17-1/2 inch, 1/4 inch material high lift

1шт.

8

602593R3

TIP

SWEEP, 18 inch, 1/4 inch material, For use on IH machines

1шт.

8

810197C2

SWEEP

18 in. 1/4 in. material, For use on competition machines

1шт.

8

603891R3

SWEEP

18 inch, 5/16 inch material

1шт.

9

599594R2

SWEEP, 16 inch, 1/4 inch material left wing clipped

1шт.

9

599596R1

SHOVEL

SWEEP, 17-1/2 inch, 1/4 inch material left wing clipped - high lift

1шт.

10

599595R2

SHOVEL

SWEEP, 16 inch, 1/4 inch material right wing clipped

1шт.

10

599597R1

SHOVEL

SWEEP, 17-1/2 inch, 1/4 inch material right wing clipped - high lift

1шт.

604472R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 no. 3 type 5 plow, For ground working tools over 2 inch on 25 inch clearance shanks, two bolts required to attach each ground working tool

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

602307R1

CARRIAGE BOLT,#3, 1/2" x 2 1/4"

BOLT, 1/2-13 x 2-1/4 no. 3 type 5 plow, For 2 inch ground working tools on 25 inch clearance shanks, For tools over 2 in. on 32 inch high clearance shanks, two bolts required to attach each ground working tool

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

28158R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT, 1/2-13 x 2-1/2 no. 3 type 5 plow, For 2 in. tools on 32 inch shank, two bolts required to attach each ground working tool

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

594242R1

BOLT,#3, 7/16" x 1 3/4"

7/16-14 x 1-3/4 type 5 no. 3 plow w/special head, For use w/I.H. Hamilton sweeps on Jeoffrey 22 inch and 32 inch shanks, Massey, Thrash King shanks, Case and Oliver Chisel plow shanks, two bolts required to attach each ground working tool

1шт.

594243R1

PLOW BOLT,#3, 7/16" x 2 1/4"

BOLT, 7/16-14 x 2-1/4 type 5 no. 3 plow w/special head, For use w/I.H. Hamilton shovels and points on all current chisel plow on the market, two bolts required to attach each ground working tool

1шт.

598901R1

BOLT,#3, 7/16" - 14 x 2"

7/16-14 x 2 type 5 no. 3 plow w/special head, For use w/I.H. Hamilton shovels and points on all current chisel plows on the market, two bolts required to attach each ground working tool

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd, For 25 in. cushion clamp & shank, two bolts required to attach each ground working tool

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.
