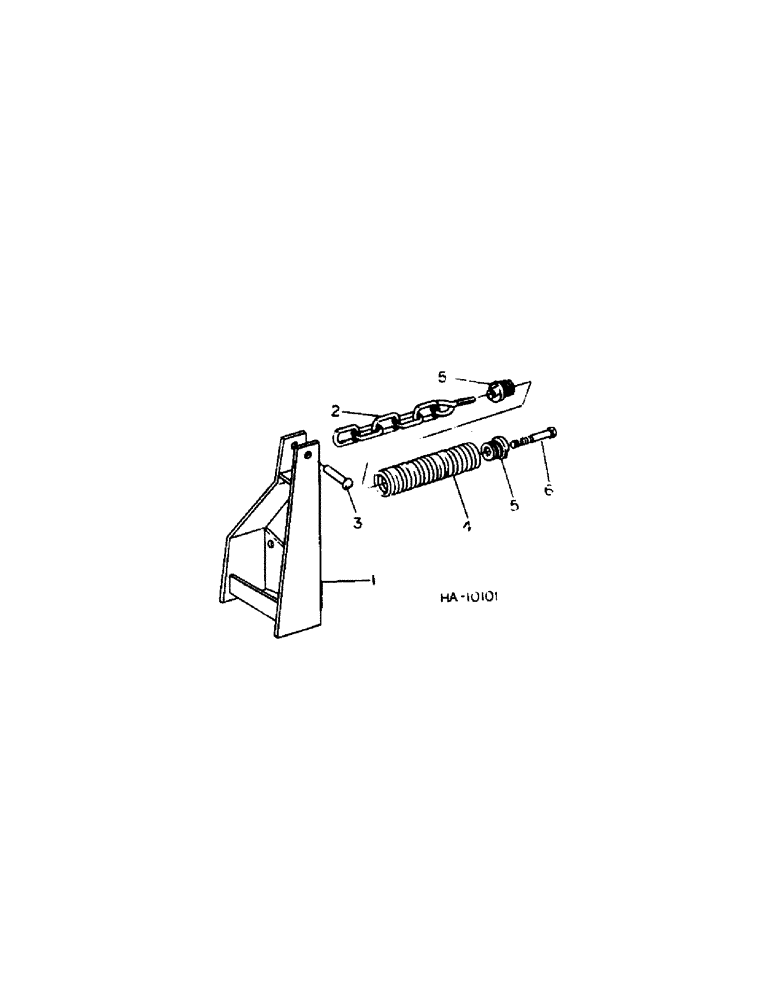

Запчасти Case IH 5500 (D-06) - WEIGHT TRANSFER UNIT, SINGLE WING

1

813561C1

SUPPORT

ASSY, weight transfer

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8 x 5 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

2

813593C1

CHAIN (AG)

CHAIN ASSY, weight transfer

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

3

22095R1

PIN

3/4 x 3 std-hd-dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

4

811342C1

SPRING

weight transfer

1шт.

5

811338C1

PLUG

spring

2шт.

6

812199C1

BOLT,Hex, 5/8" - 11 x 4"

5/8-11 x 4 hex-hd-special

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.
