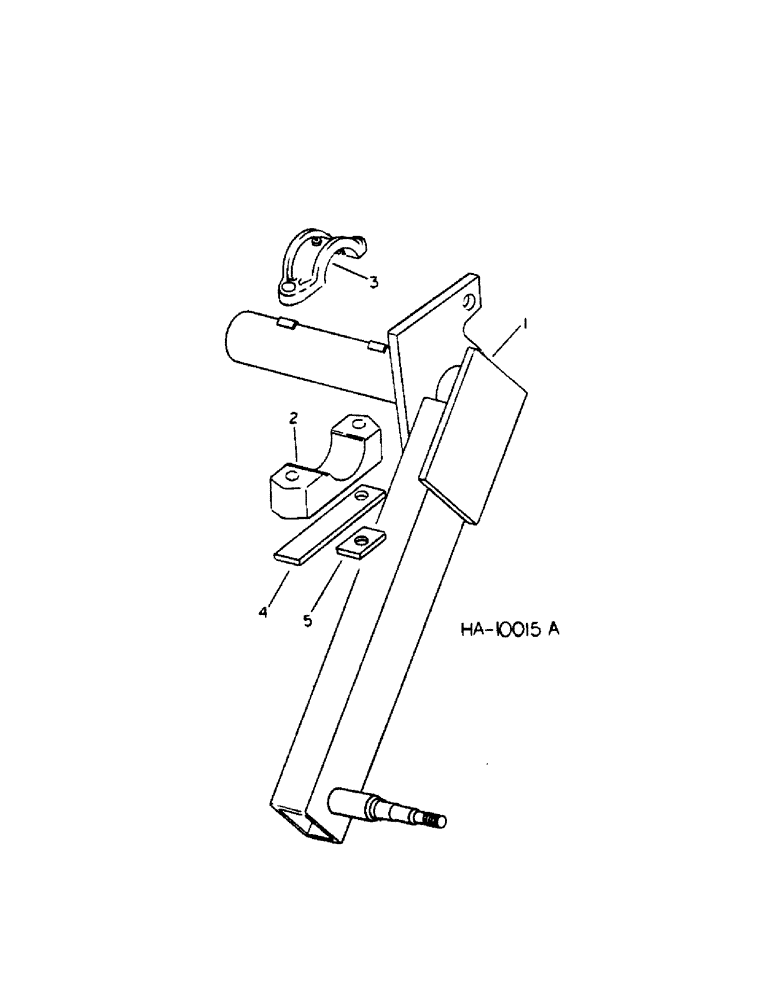

Запчасти Case IH 5500 (D-06[A]) - CENTER AXLE

1

811059C91

AXLE

ASSY, 25 inch regular clearance

1шт.

Ref #1 - Shaft, (34.8" Center to Center) 08/19/96

1шт.

1

811060C91

AXLE

ASSY, 32 inch regular clearance, Includes 1-619373R1, washer, 1-70120D, nut & 1-103388, pin

1шт.

Ref #1A - Shaft, (39.4" Center to Center) 08/19/96

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

1шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

2

811856C2

CAP

center axle

2шт.

3

605664R1

CAP

center axle upper

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

20800R1

BOLT,Hex, 3/4" - 10 x 14", Gr 5

3/4 x 14 pln type 5

2шт.

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4 x 11 pln type 5

2шт.

280954

NUT,3/4"-10, G5

4шт.

4

811861C1

BAR

spacer

2шт.

5

811897C1

BAR

short spacer

2шт.
