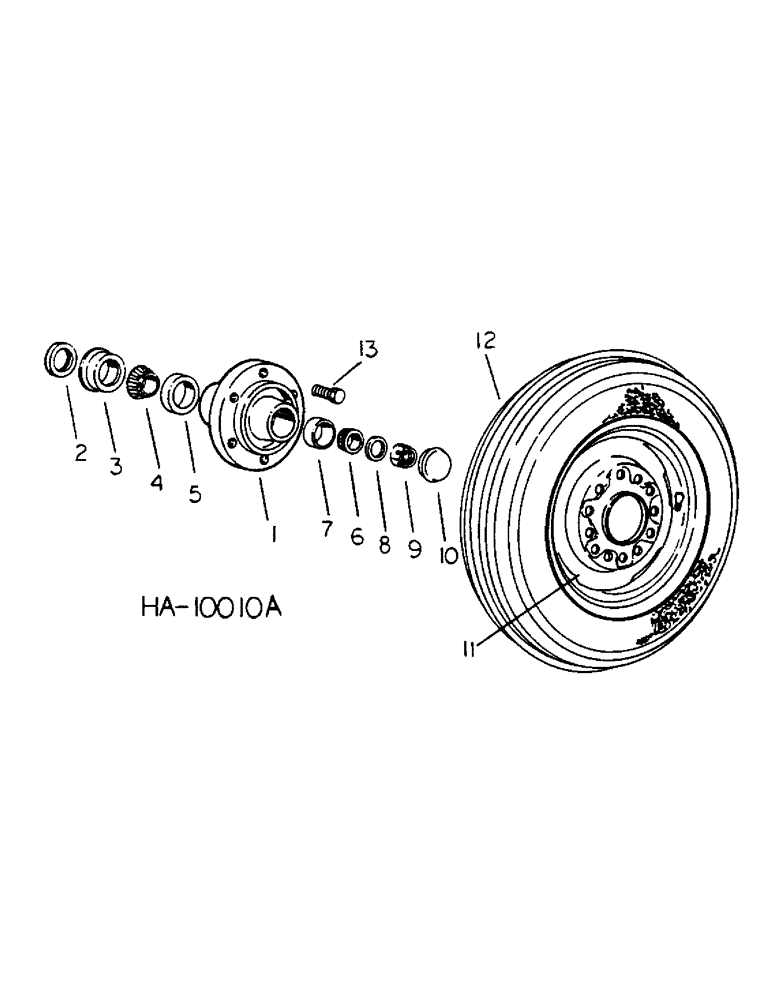

Запчасти Case IH 5500 (D-05) - OUTER WHEEL AND HUB, SINGLE WING

1

810087C2

HUB

outer wheel

2шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, hub inner bearing

2шт.

5

651817R1

BEARING CUP

CUP, hub inner bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, hub outer bearing

2шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer bearing retainer

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

10

B13280

HUB CAP

CAP, wheel hub, Replaces 602959R1

1шт.

11

622192R91

WHEEL

15 x 5 KB outer

2шт.

12

TIRE, 7.60-15 6 ply I-1 tubeless

2шт.

810769C1

VALVE

ASSY, tubeless steel

2шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2-20 x 1-1/2 inch wheel, Replaces 351079R1

12шт.

811362C1

EXTENSION

PACKAGE, tire valve guard service, Includes 12 guards & 1 pamphlet

1шт.
