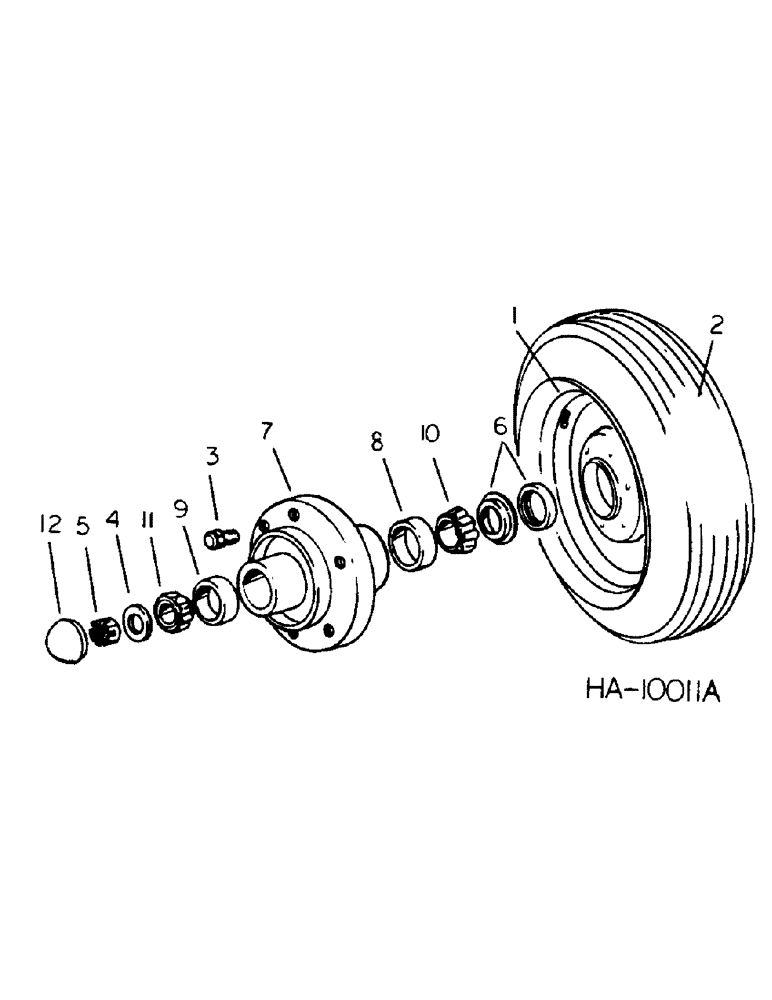

Запчасти Case IH 5500 (D-04) - CENTER WHEEL AND HUB, SINGLE WING

1

486101R2

RIM

WHEEL, 15 x 8 KB center

1шт.

2

TIRE, 9.5L-15 8 ply I-1 tubeless

1шт.

810769C1

VALVE

ASSY, tubeless steel

1шт.

3

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel 1/2-20 x 1-1/2 inch, Replaces 351079R1

6шт.

4

619373R1

WASHER

.906 x 2.000 x .164

1шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slotted hex.

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

6

606556R91

OIL SEAL

SEAL ASSY, oil

1шт.

7

606468R21

HUB

ASSY, center wheel, Includes 1-663558R1, cup and 1-651817R1, cup

1шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

1шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

1шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

1шт.

12

663906R1

CAP

wheel hub

1шт.

811362C1

EXTENSION

PACKAGE, tire valve guard service, Includes 12 guards & 1 pamphlet

1шт.
