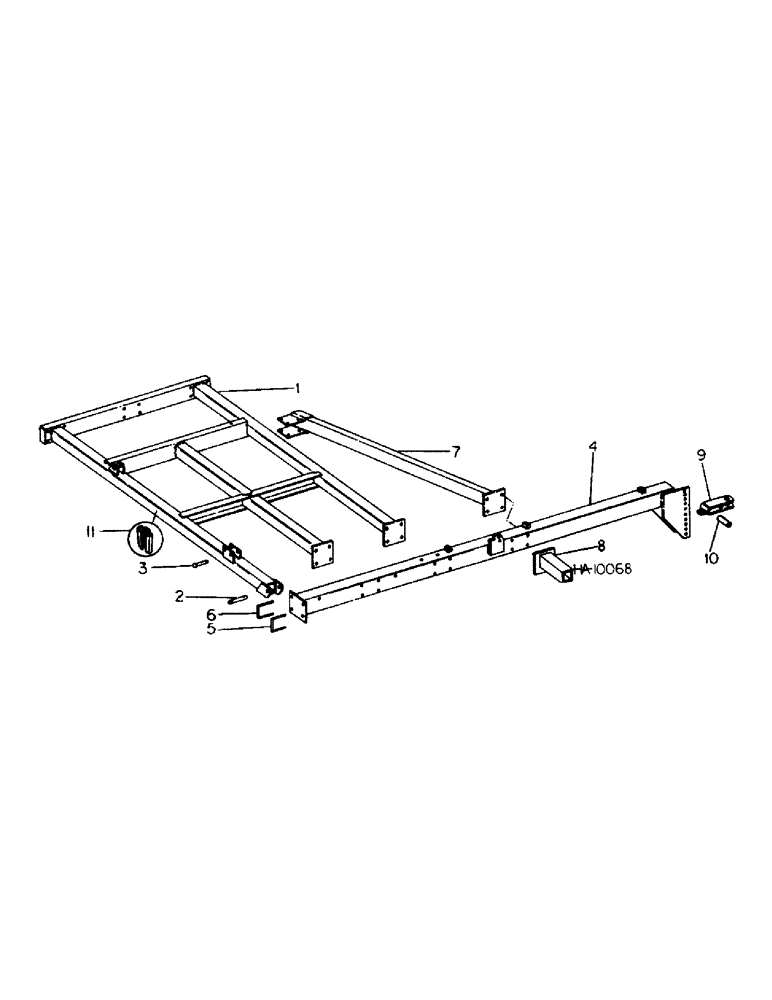

Запчасти Case IH 5500 (D-02) - MAIN FRAME AND HITCH, SINGLE WING

1

97477C91

FRAME

ASSY, main, Includes the following

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general caution

1шт.

1284365C1

REFLECTOR,Reflector Amber

amber

1шт.

1284374C1

REFLECTOR,Reflector Red

red

2шт.

2

811824C1

PIN

hinge

2шт.

3

594608R1

PIN

1-1/8 x 4-3/4 std-hd-dld lift lock

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

21226R1

WASHER

1.28 x 2.000 x .105

4шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

4

813541C1

BEAM

ASSY, hitch

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

hitch rear support

1шт.

6

608528R1

BOLT,U, 5/8" - 11 x 5.75"

U-BOLT, hitch rear support

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

811475C91

BRACE

ASSY, hitch diagonal, Includes 1-810170C2

1шт.

810170C2

PRODUCT GRAPHIC

warning - wing frame

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 x 6 type 5

7шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

7шт.

8

811895C3

TUBE

ASSY, hitch connection

1шт.

9

813560C1

CLEVIS

ASSY, hitch

1шт.

812672C1

BOLT,1" - 8 x 7"

1-8 x 7 hex-hd-dld type 8

1шт.

9849633

NUT,1"-8, G5

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

10

811891C1

SPACER

clevis

1шт.

11

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
